The pulse amplitude of the encoder’s output square wave signal is dependent on the voltage you supply the sensor. For example, if you provide 5V to Sensor Voltage +, then Channels A & B will have a pulse amplitude of 5V.

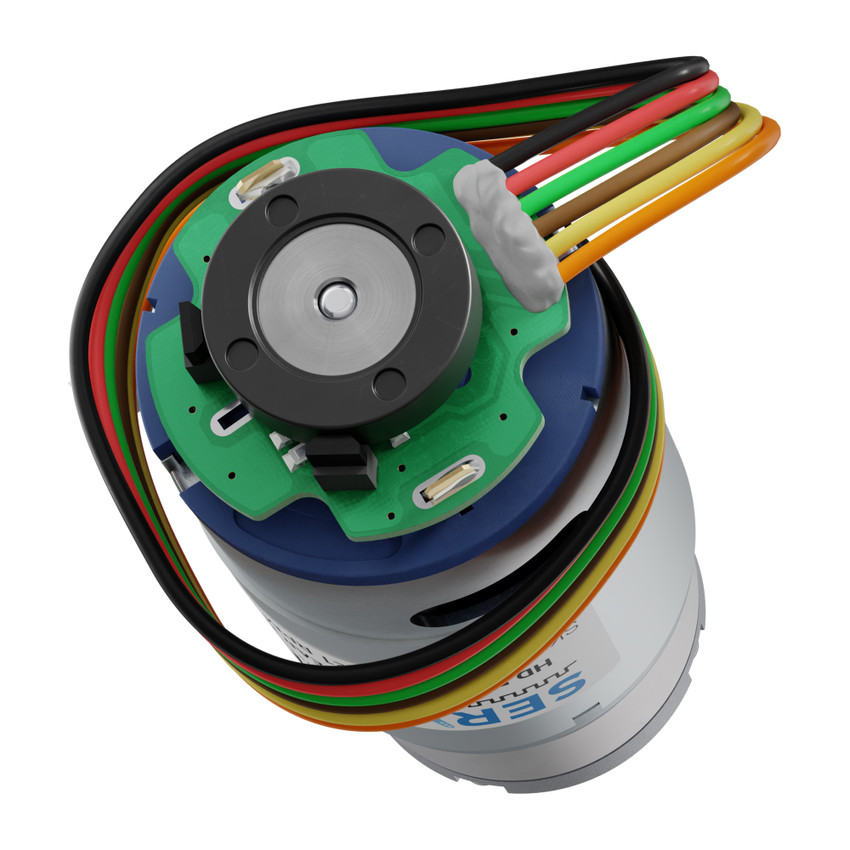

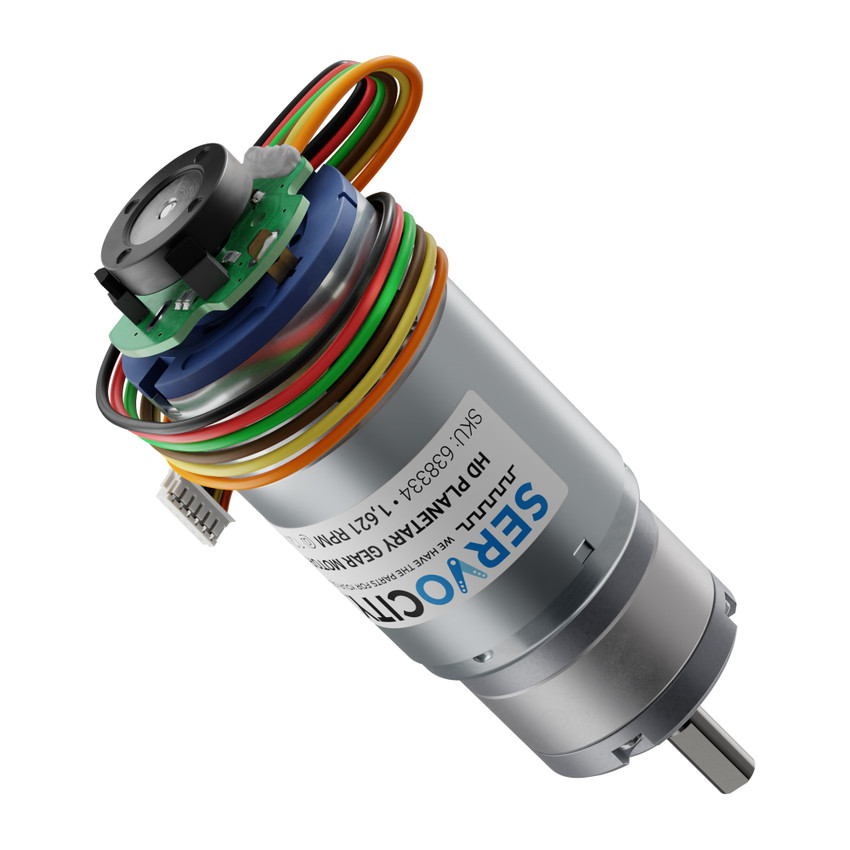

To enhance the resolution, the encoder is attached to the motor before the gearbox.
Gear train damage can occur if stalled (locked).

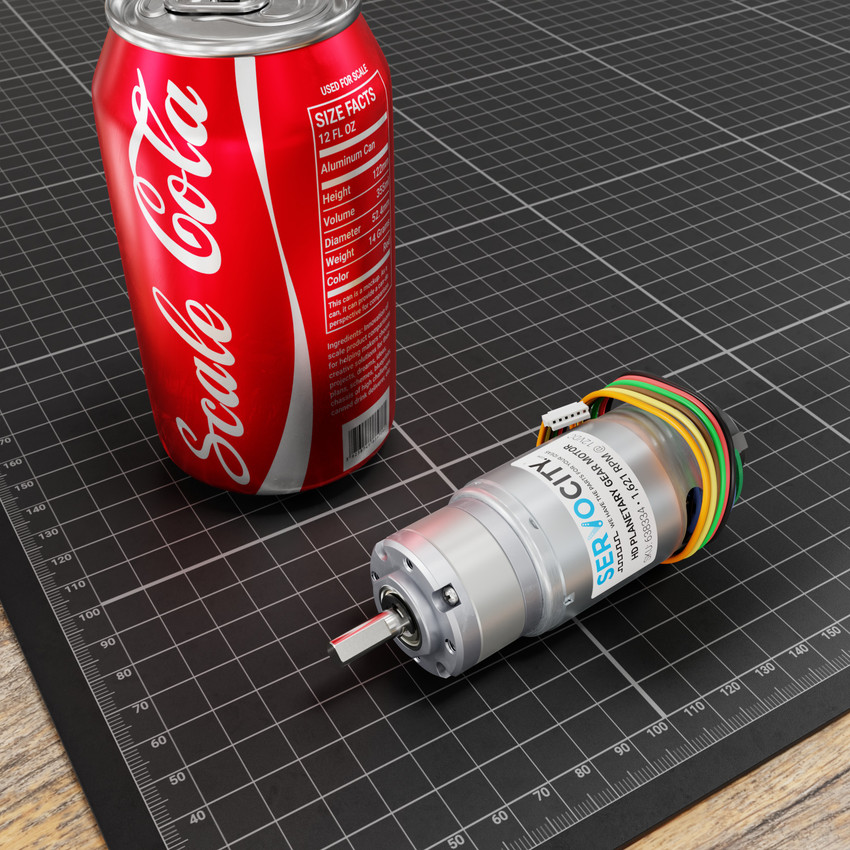

Output Shaft Style | D-shaft |
---|---|
Motor Type | Brushed DC |
Output Shaft Support | Dual Ball Bearings |
Gear Material | brass primary, nylon secondary, steel tertiary |
Weight | 13.5 oz (382g) |
Voltage (Nominal) | 12V |
Voltage Range (Recommended) | 6V - 12V |
Speed (No Load @ 12VDC) | 1,621 rpm |
Current (No Load @ 12VDC) | 0.51A |
Current (Stall @ 12VDC) | 20A |
Torque (Stall @ 12VDC) | 97 oz-in (7 kgf-cm) |
Gearbox Style | Planetary |
Connector Type | PH Series JST 6-pin Connector (2mm Pitch) |
Encoder: Cycles Per Revolution (Motor Shaft) | 12 |
Encoder: Countable Events Per Revolution (Output Shaft) | 248.736 |
Gear Ratio | 5.182:1 |
Encoder Type | Relative, Quadrature |
Encoder Sensor Type | Magnetic (Hall Effect) |
Encoder Sensor Input Voltage Range | 2.4 - 26V |
Encoder Sensor Output Pulse Amplitude | ~=Sensor Input Voltage |
