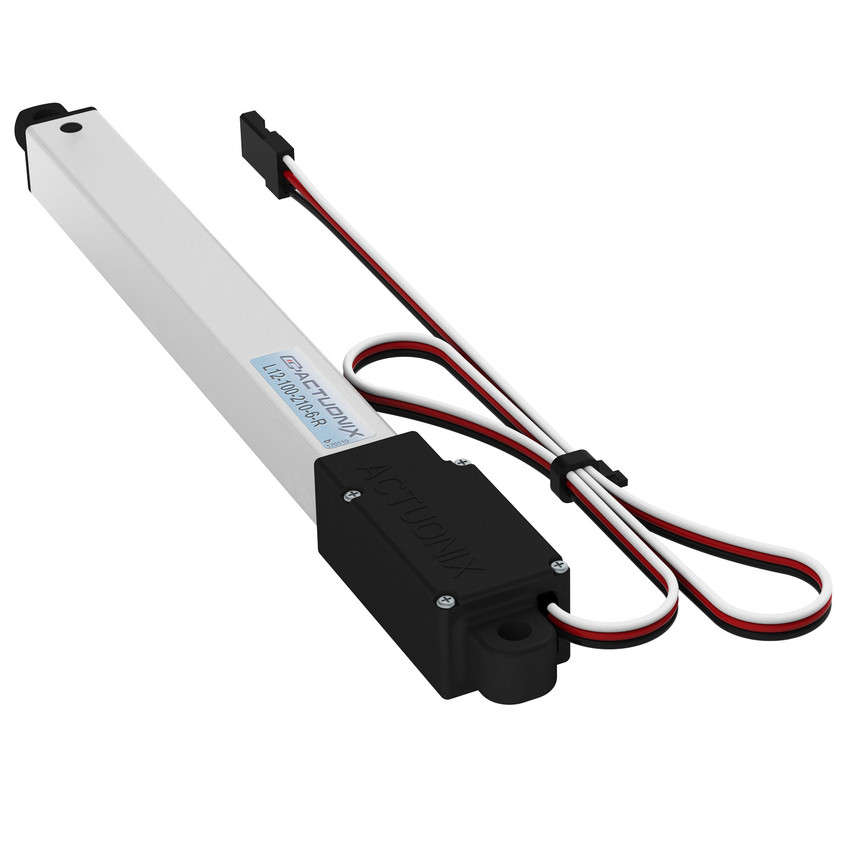

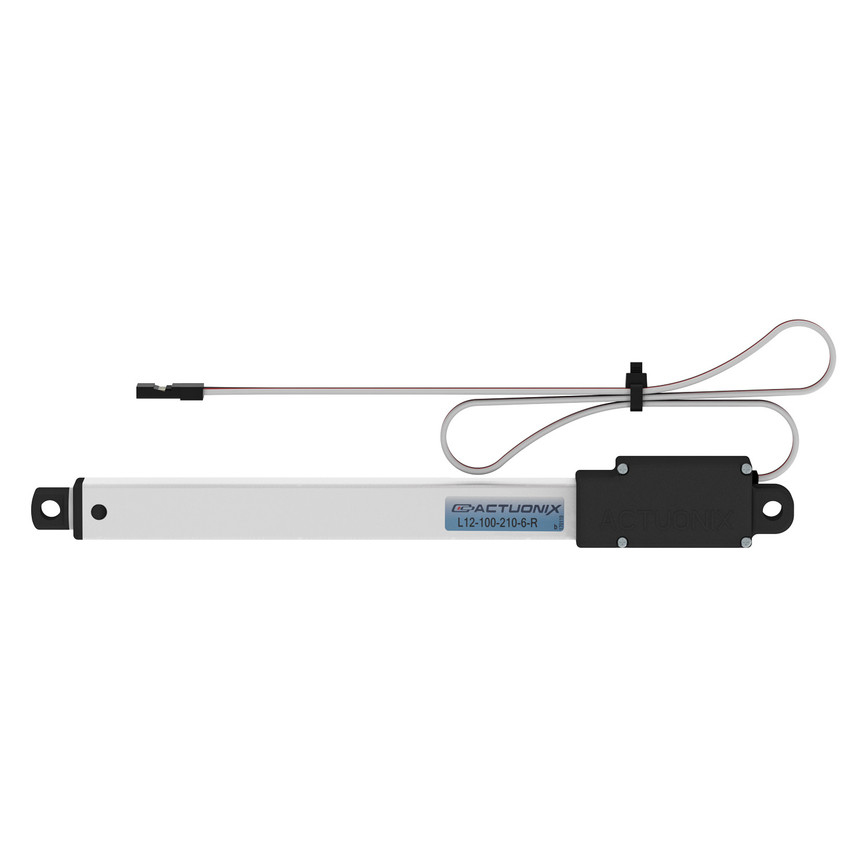

100 mm Stroke 17 lb Thrust Light Duty Linear Servo
SKU:
The L12-R series of small linear servos operate as a direct replacement for standard rotary servos. They use the same standard 3 wire connector, ground power and control. Regardless of how you drive your servos, be it with an RC receiver, an Arduino board, or a VEX micro-controller, the L12-R servo will function in place of a regular servo, but with the added benefit of providing linear motion.
These hobby grade units are constructed using an anodized aluminum shaft, metal gearbox, brass screw and steel ball bearings. These actuators are built to last and look stylish on your models.
NOTE: The L12-R will not operate with Futaba receivers like the R6014FS that output 2.7 volts. You will need a Smart Fly Power Expander or Orbit Power Jack to bring the signal level up to 5vdc for the L12-R to operate.
These linear servos are approved by First Tech Challenge and are compatible with their allowed servo controllers
Need more power? Check out the L16-R series Linear Servos

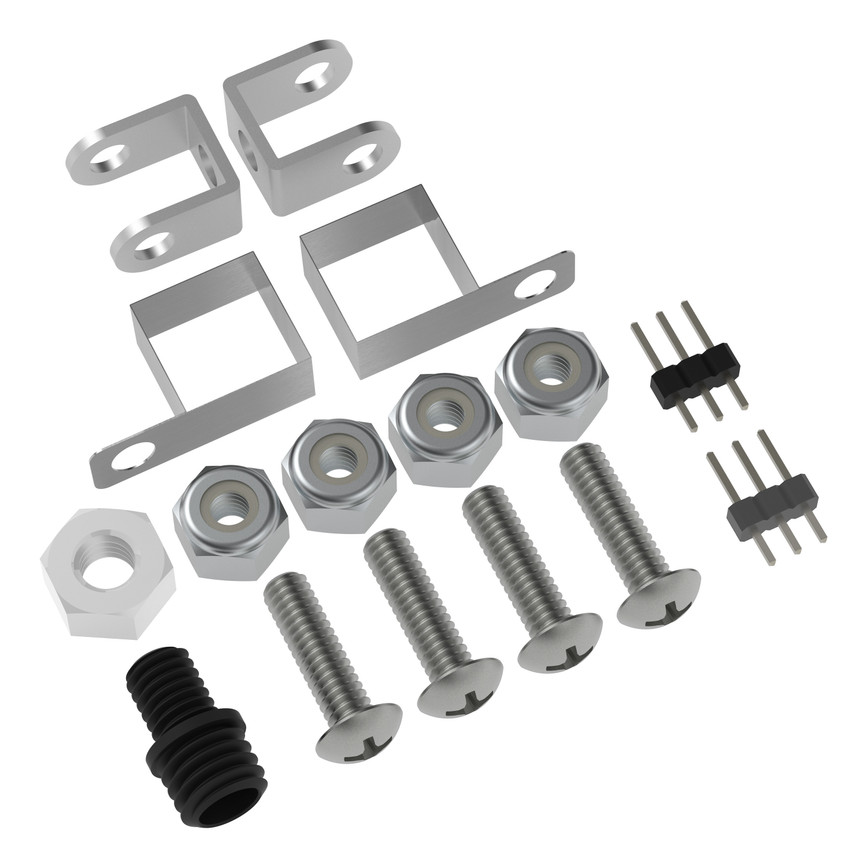

Included Mounting Hardware:
| Part | Qty |
|---|---|
| 3 Position Header 0.100" (2.54mm) Pitch | 2 |
| 8-32 Lock Nut | 4 |
| 8-32 x 0.625 Screw | 4 |
| Square Body Bracket | 2 |
| U-Bracket | 2 |
| M6 x 1.0mm Nylon Nut | 1 |
| M6 x 1.0mm Stud Actuator End Cap | 1 |

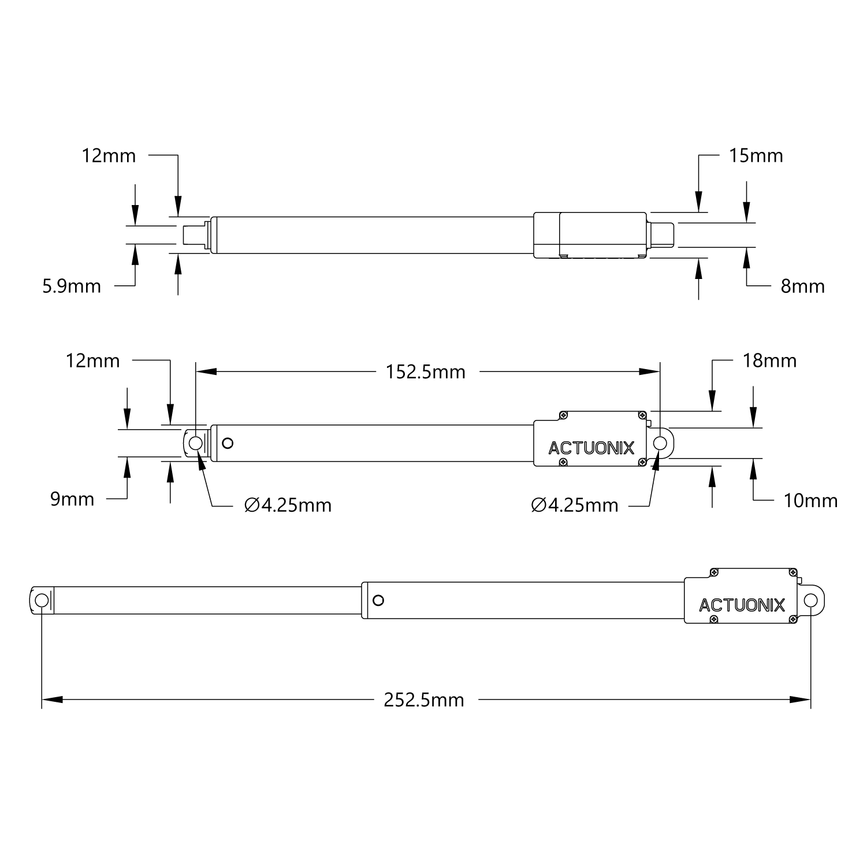

Hardware Schematic
Specs
| Stroke | 3.9" |
|---|---|
| Pulse Amplitude | 3 - 5 V |
| Operating Temperature | -10°C ~ +50°C |
| Motor Type | Brushed DC |
| Feedback Style | 11 KΩ / inch |
| Wire Length | 300 mm |
| Weight | 2.45 oz |
| Wire Gauge | 26 AWG |
| Voltage Range (Recommended) | 4.5V - 7.5V |
| Speed (No Load)* | 6.5 mm per second |
| Connector Type | Male Servo Connector |
| Gear Ratio | 210:1 |
| Dynamic Thrust* | 80 N |
| Static Load | 200 N powered on, 45 N powered off |
| Current Drain (No-Load)* | 7.2 mA |
| Current Drain (Stall)* | 460 mA |
| IP Rating | IP54 |
| Duty Cycle | 20% |
| Potentiometer Linearity | Less than 2.00% |
