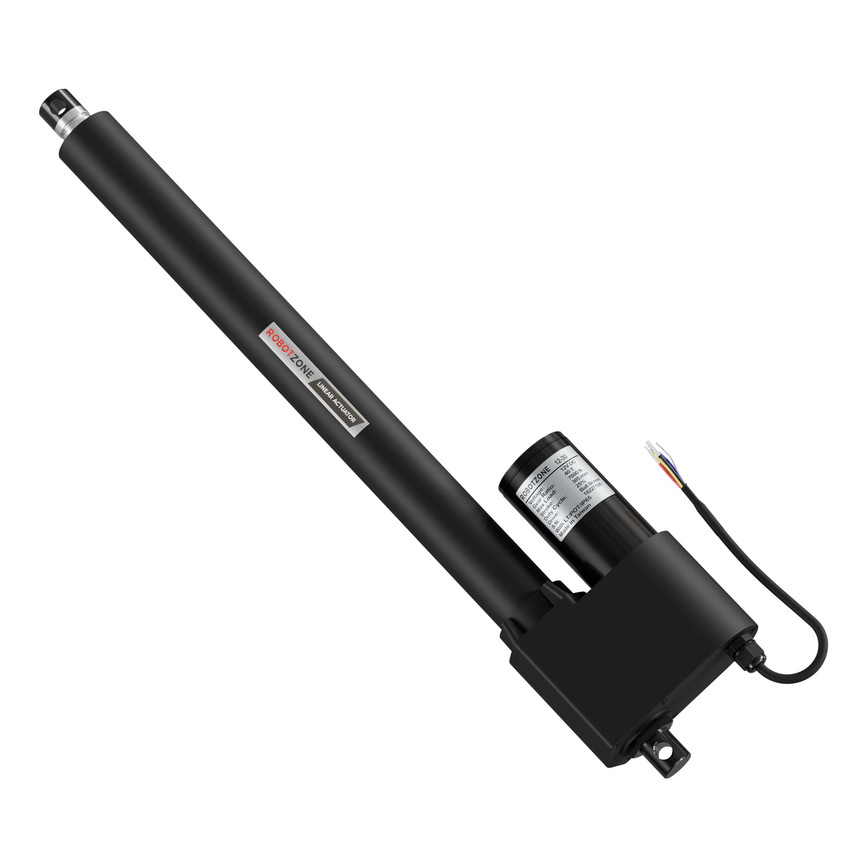

12V Super-Duty Linear Actuator (1570lb Thrust, 0.3"/sec, 12" Stroke)
SKU:
 |
| |||||||||
  |
| |||||||||
To get your actuator up and running, apply 6-12VDC to the positive (red) and negative (black) wires. You do not need to do anything with the potentiometer wires (Blue, Yellow, White). The potentiometer wires are only needed if you are building a system which requires you to know the exact position of the actuator piston.
Features:
-Sealed O-ring
-Durable design for even the toughest industrial applications
-Clutch overload protection
-CE Certified (CD55011)
Tech Tips:
Note: These systems are extremely powerful and caution must be used during operation.
Specs
| Stroke | 12" |
|---|---|
| Operating Temperature | -25°C ~ +65°C |
| Motor Type | 3 Pole Ferrite |
| Feedback Style | 10KΩ Potentiometer |
| Gear Material | Metal Gear Train |
| Wire Length | 12" |
| Weight | 186.7 oz |
| Voltage Range (Recommended) | 6V - 12V |
| Speed (No Load)* | 0.33” per second |
| Gearbox Style | Straight Cut Spur |
| Gear Ratio | 40:1 |
| Speed (Max Load)* | 0.29” per second |
| Dynamic Thrust* | 1,570 lbs |
| Static Load | 3,050 lbs |
| Current Drain (No-Load)* | 3A |
| Potentiometer Tolerance | ± 5% |
| Feedback Density | 0.83KΩ / inch |
| IP Rating | IP54 |
| Duty Cycle | 25% (25% on, 75% off) |
| Lead Screw Type | Ball Screw |
| Lead Screw Material | Steel |
| Potentiometer Linearity | ± 0.25% |
| Previous SKU | SDA12-30 |
