1314 Series Steel Set-Screw Hub (6mm Bore)
SKU:

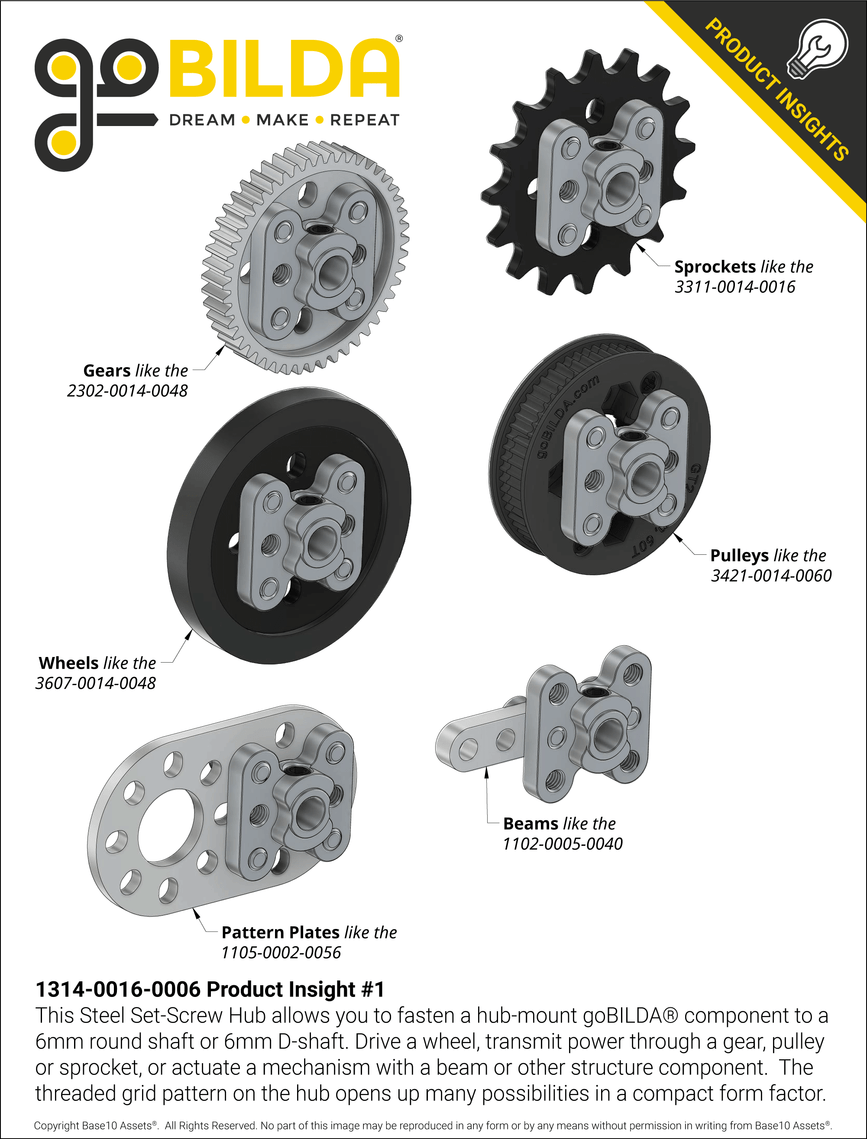

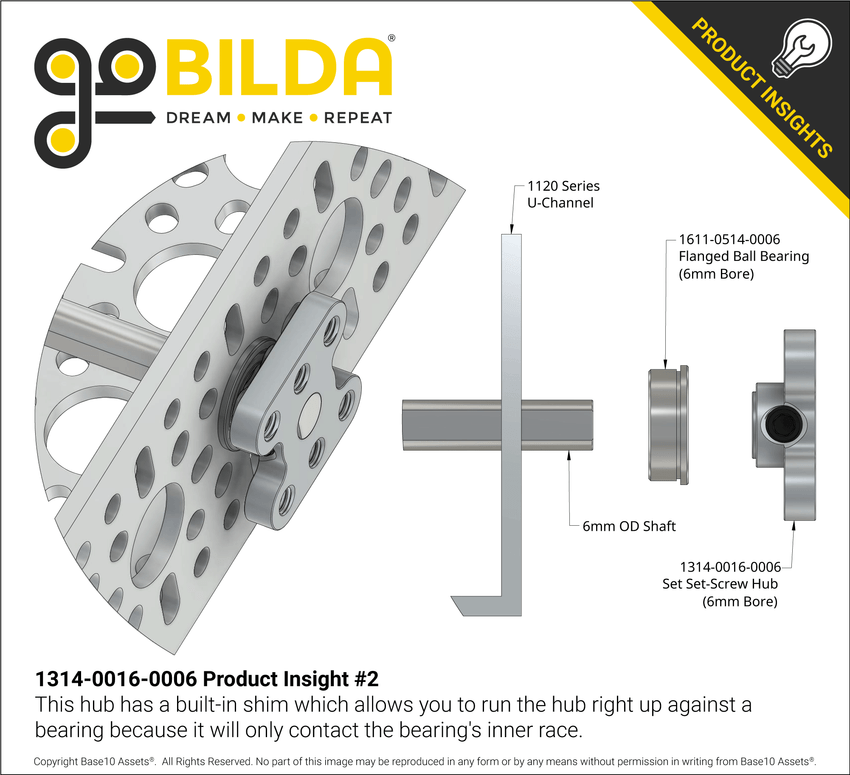

This 6mm bore set-screw hub allows you to rotate a gear, sprocket, pulley, bracket or beam via a 6mm diameter round shaft or 6mm diameter D-shaft. Its steel construction combines compact design with excellent structural integrity.

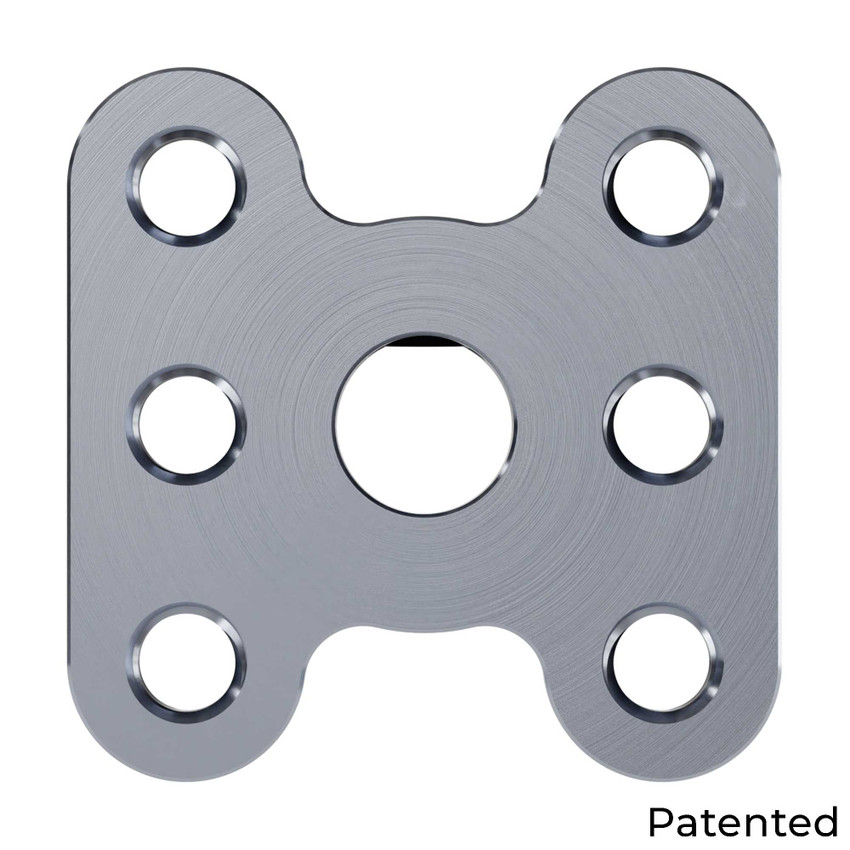

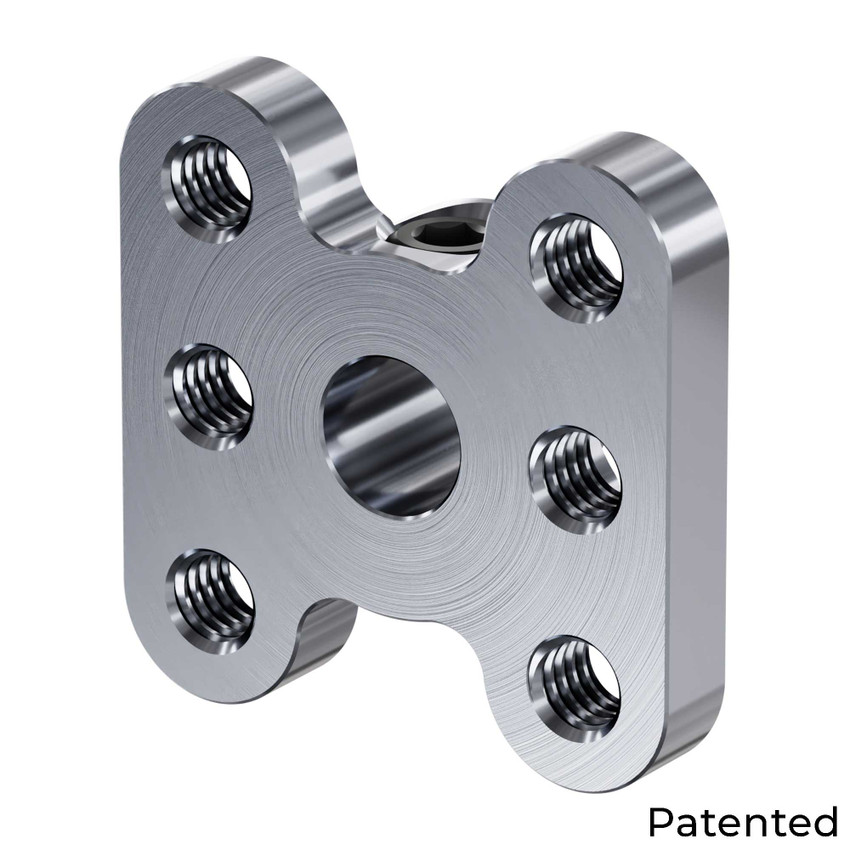

Whereas most goBILDA® hubs have a 14mm diameter protrusion on their tops, this set-screw hub is flat, allowing you to utilize the rare instance of two middle holes located 16mm across from one another—an excellent opportunity for building with beams!
SET-SCREW WITH THREAD-LOCKING NYLON PATCH
The set-screw included with this product features a nylon patch: a blue dollop of thread-locking magic that ensures extraordinary resistance to loosening from vibration!
Downloads
Specs
| Weight | 14g |
|---|---|
| Material | Steel |
| Finish | Zinc-Plated |
| IP | Patented |
