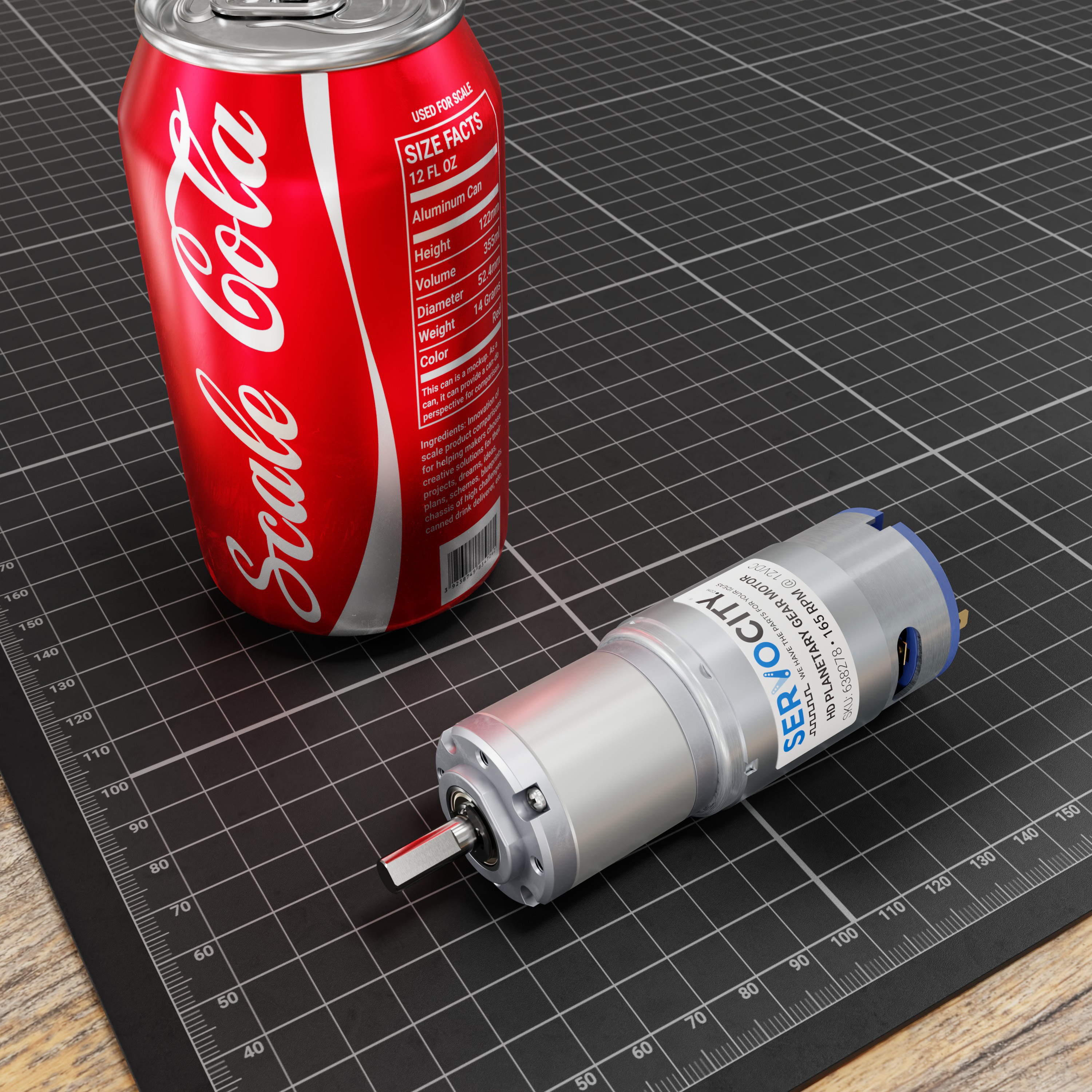

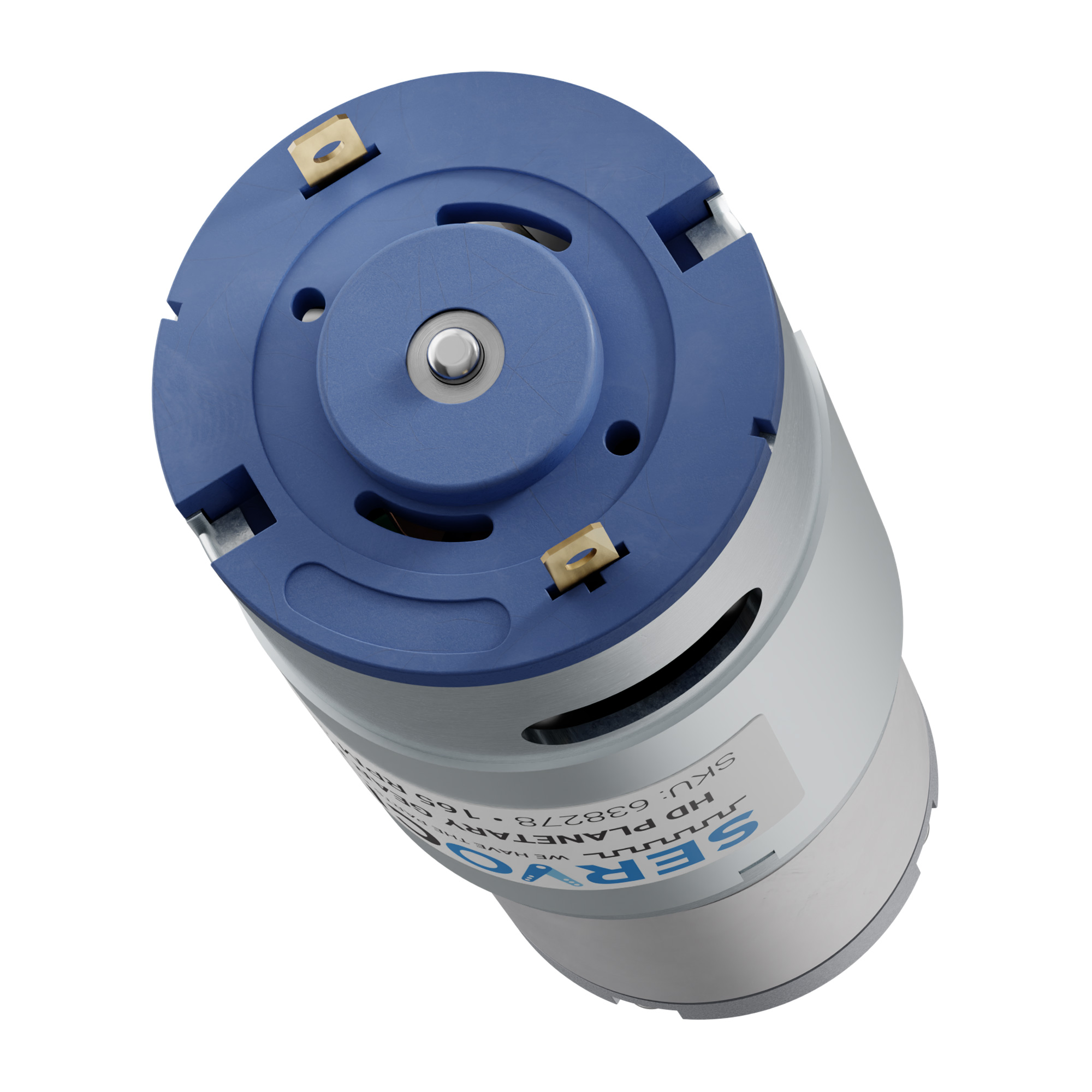

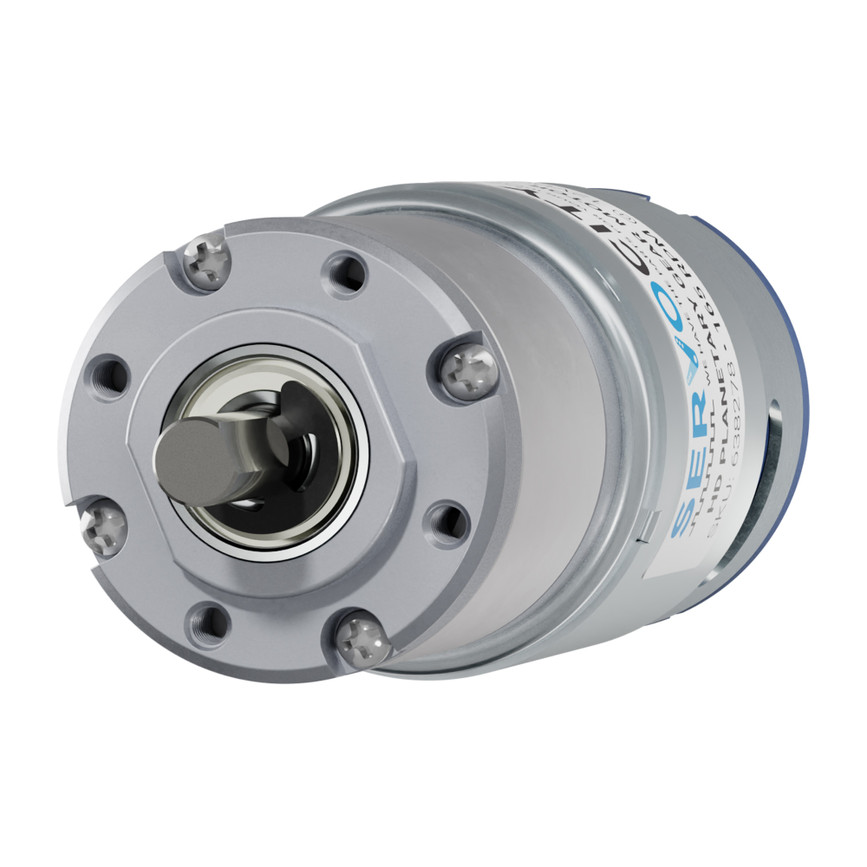

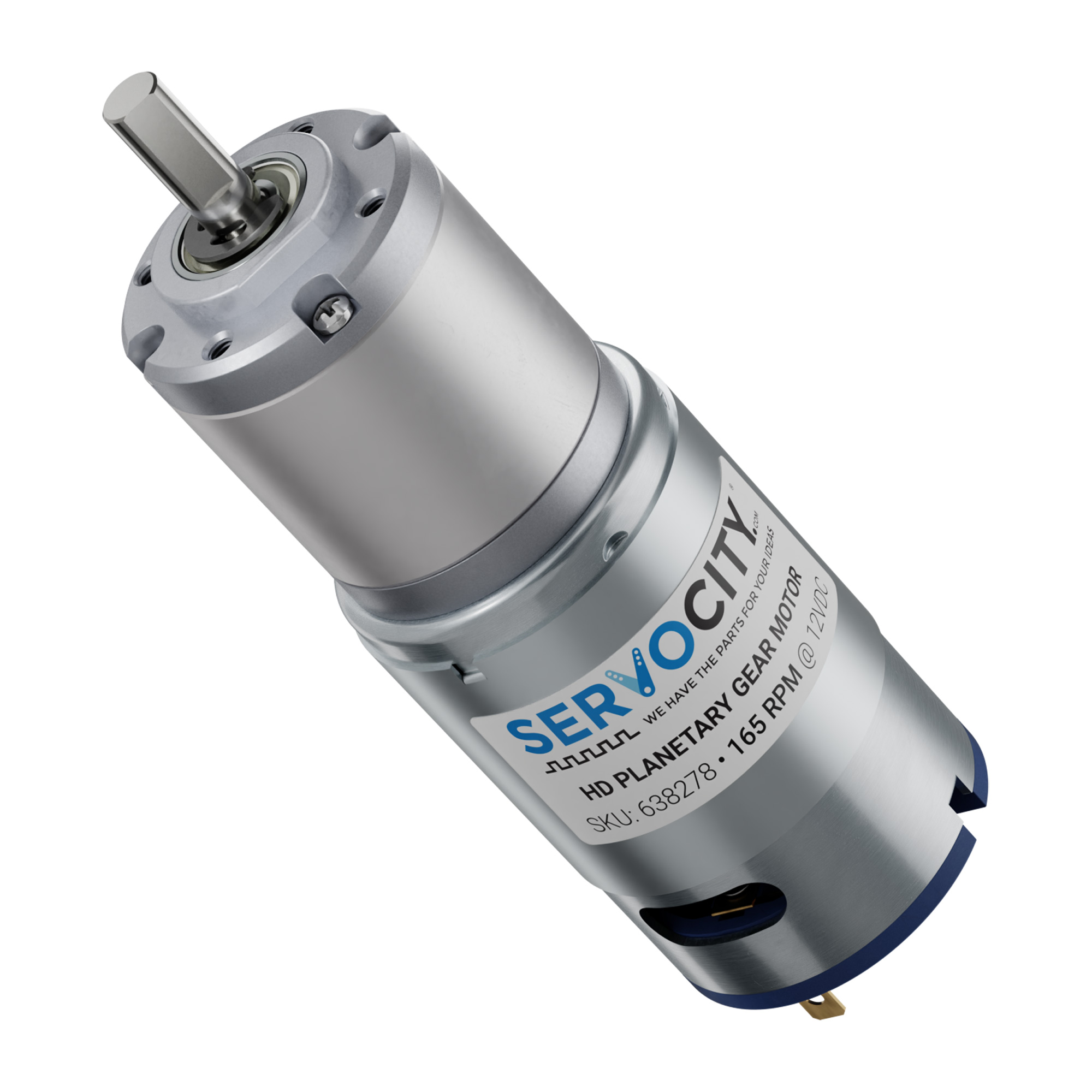

165 RPM HD Premium Planetary Gear Motor
SKU:
$39.99
Tech Tip
Stalling this gearmotor could cause gear damage.
Specs

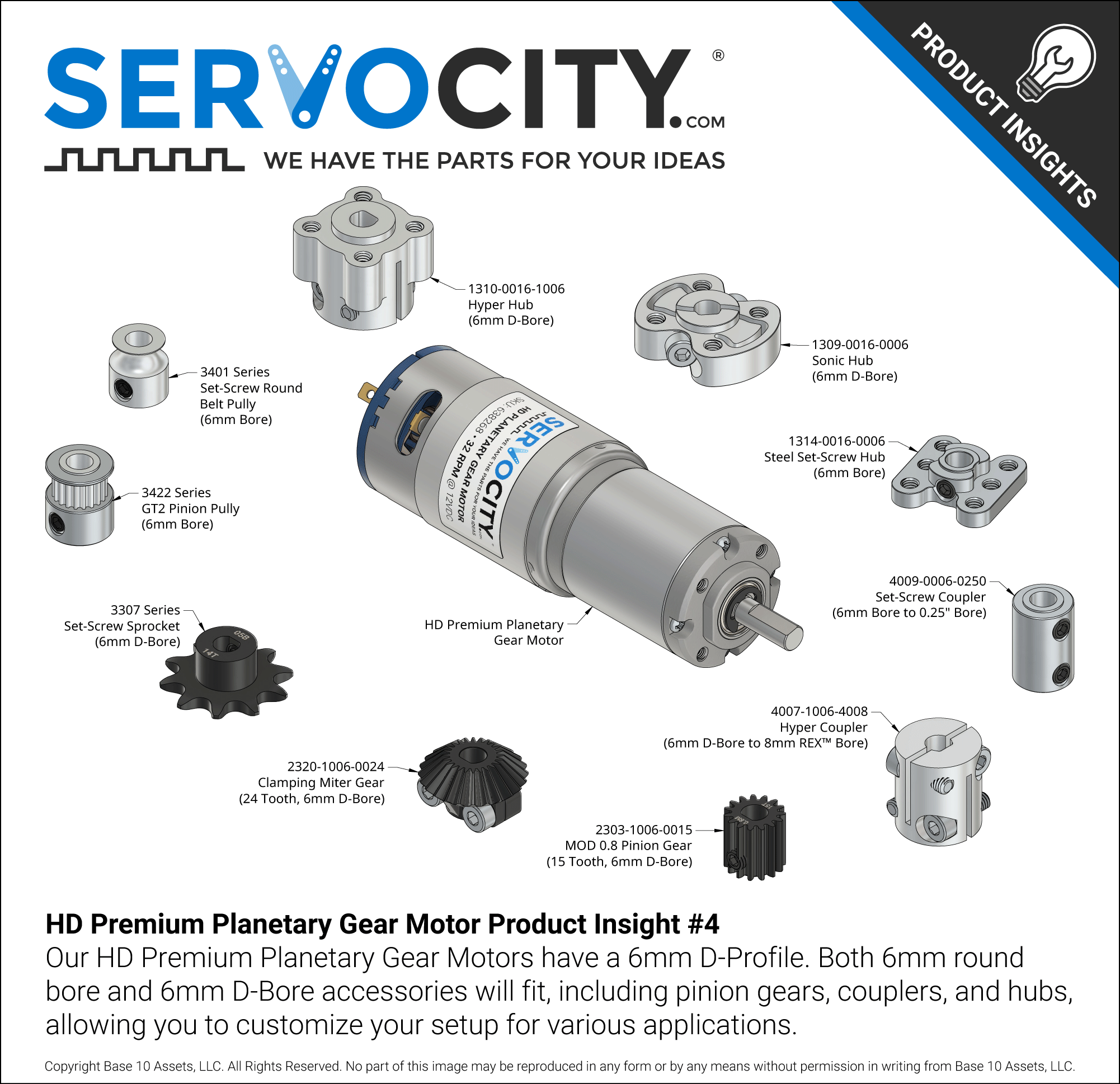

| Output Shaft Style | D-shaft |
|---|---|
| Motor Type | Brushed DC |
| Output Shaft Support | Dual Ball Bearings |
| Gear Material | brass primary, nylon secondary, steel tertiary |
| Weight | 12.4 oz (352g) |
| Voltage (Nominal) | 12V |
| Voltage Range (Recommended) | 6V - 12V |
| Speed (No Load @ 12VDC) | 165 rpm |
| Current (No Load @ 12VDC) | 0.53A |
| Current (Stall @ 12VDC) | 20A |
| Torque (Stall @ 12VDC) | 681 oz-in (49 kgf-cm) |
| Gearbox Style | Planetary |
| Connector Type | Male Spade Terminal |
| Gear Ratio | 51:1 |
