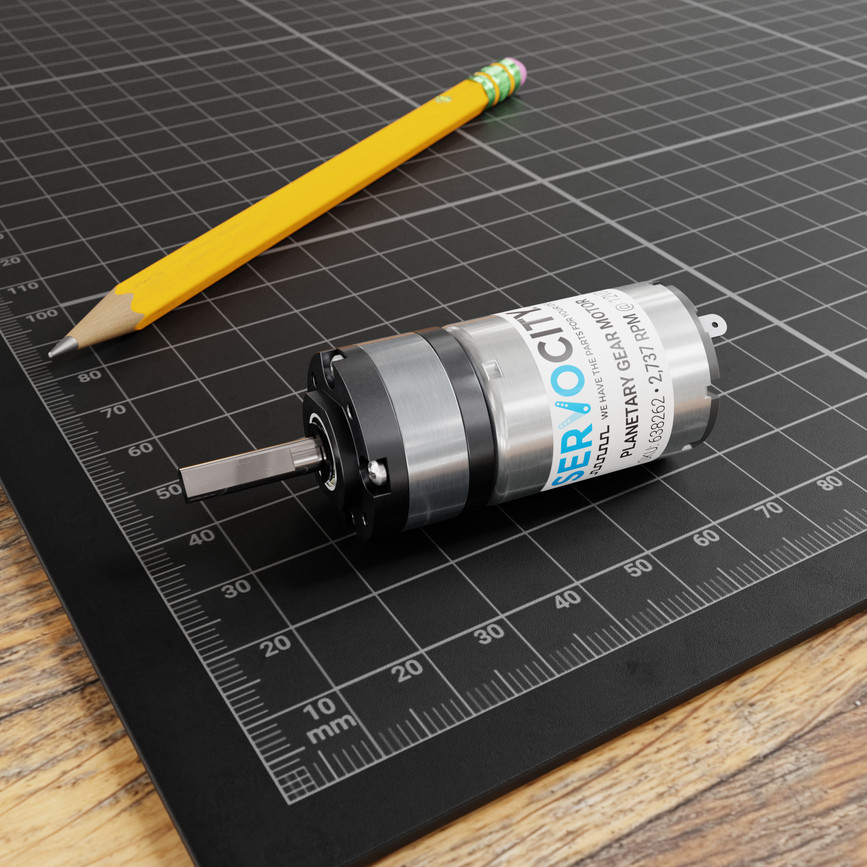

2,737 RPM Premium Planetary Gear Motor
SKU:
$29.99

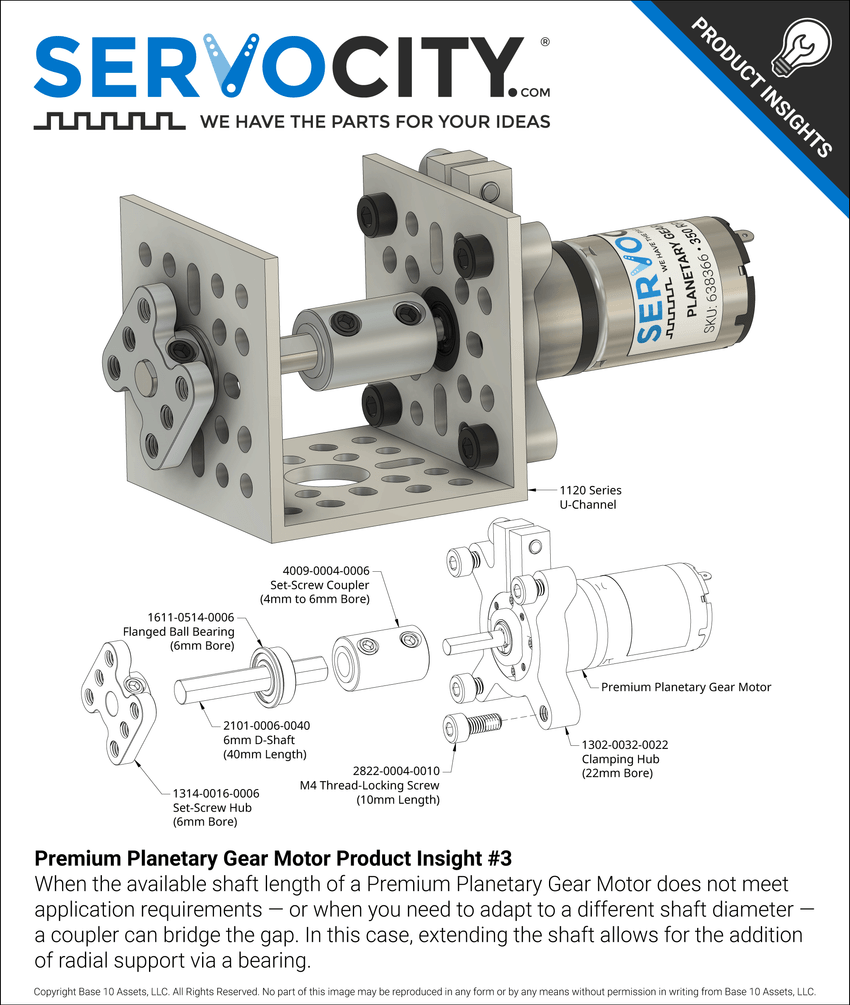

This 2,737 RPM brushed DC Premium Planetary Gear Motor packages all-metal gears and a 4mm D-shaft to drive your project.

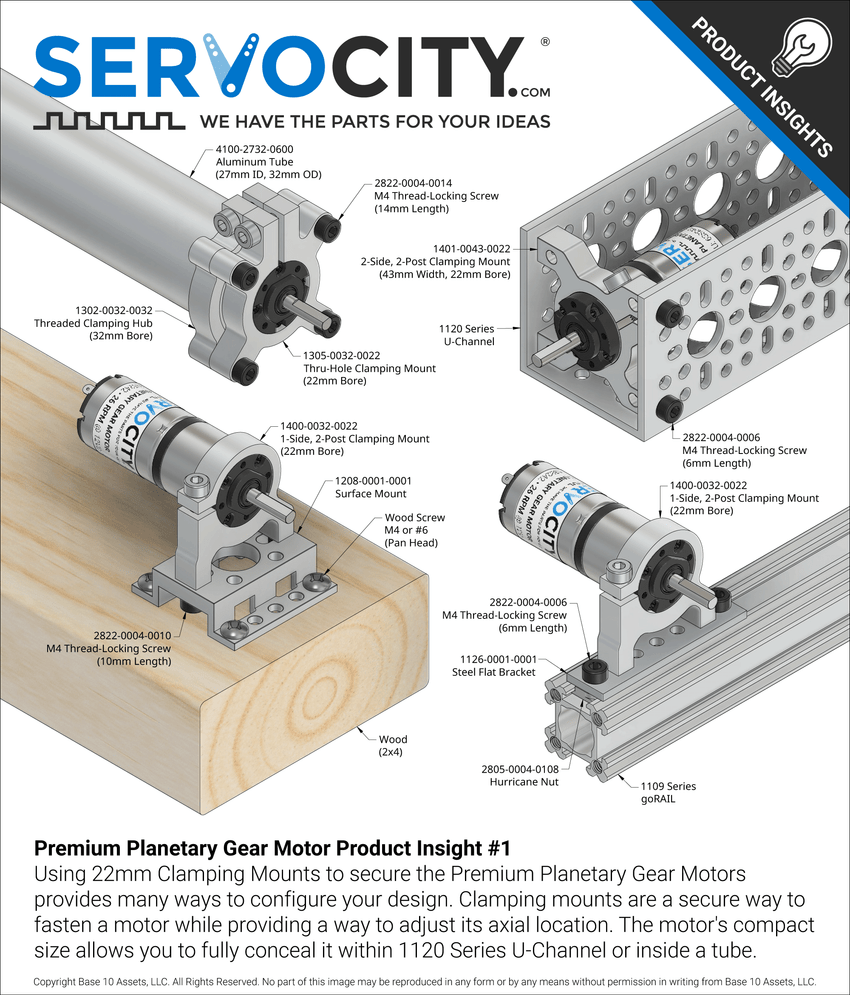

You can use its M2 threaded holes to fasten it to your project with M2 screws. Its 22mm gearbox diameter also provides for implementation with the use of 22mm bore clamping mounts.
Tech Tip
Stalling this gearmotor can cause gear damage.
Downloads
Specs
| Output Shaft Style | D-shaft |
|---|---|
| Motor Type | Brushed DC |
| Output Shaft Support | Dual Ball Bearing |
| Gear Material | Metal |
| Weight | 2.61 oz (74g) |
| Voltage (Nominal) | 12V |
| Voltage Range (Recommended) | 3V - 12V |
| Speed (No Load @ 12VDC) | 2737 rpm |
| Current (No Load @ 12VDC) | 0.18A |
| Current (Stall @ 12VDC) | 4.9A |
| Torque (Stall @ 12VDC) | 9.7 oz-in (0.7 kgf-cm) |
| Gearbox Style | Planetary |

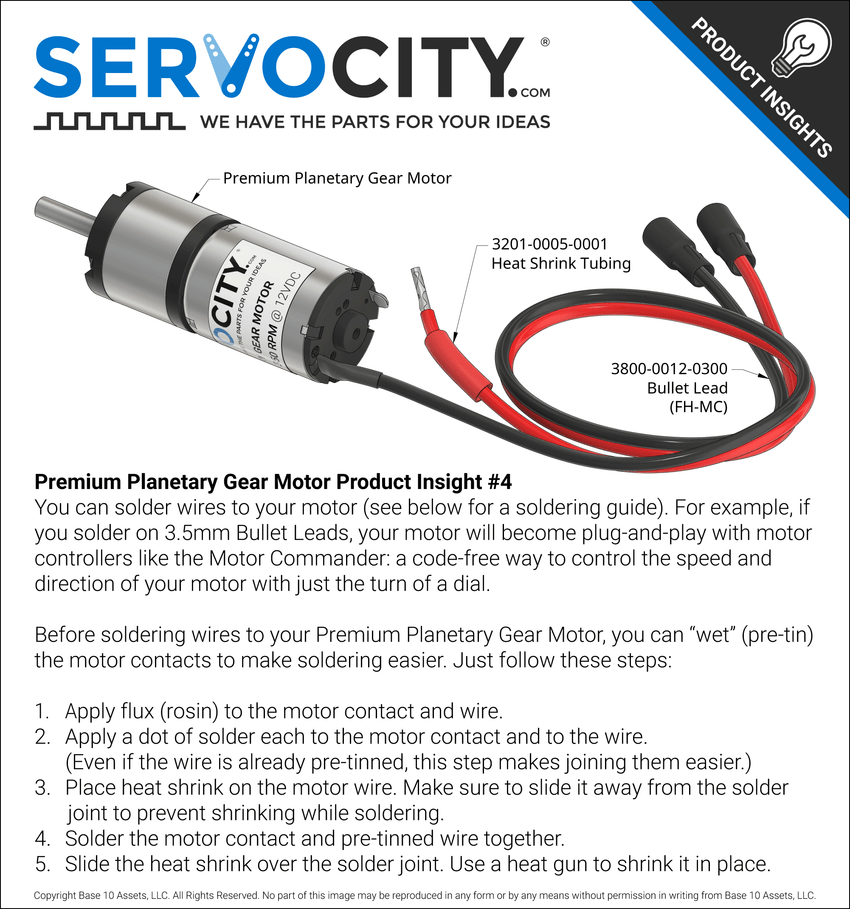

| Connector Type | Male Spade Terminal |
| Gear Ratio | 4:1 |
