Inline Skate Wheel (Blue, 76mm Diameter)

SKU:
$2.59

These blue skate wheels are ideal for smooth-surface robots transporting heavy loads!

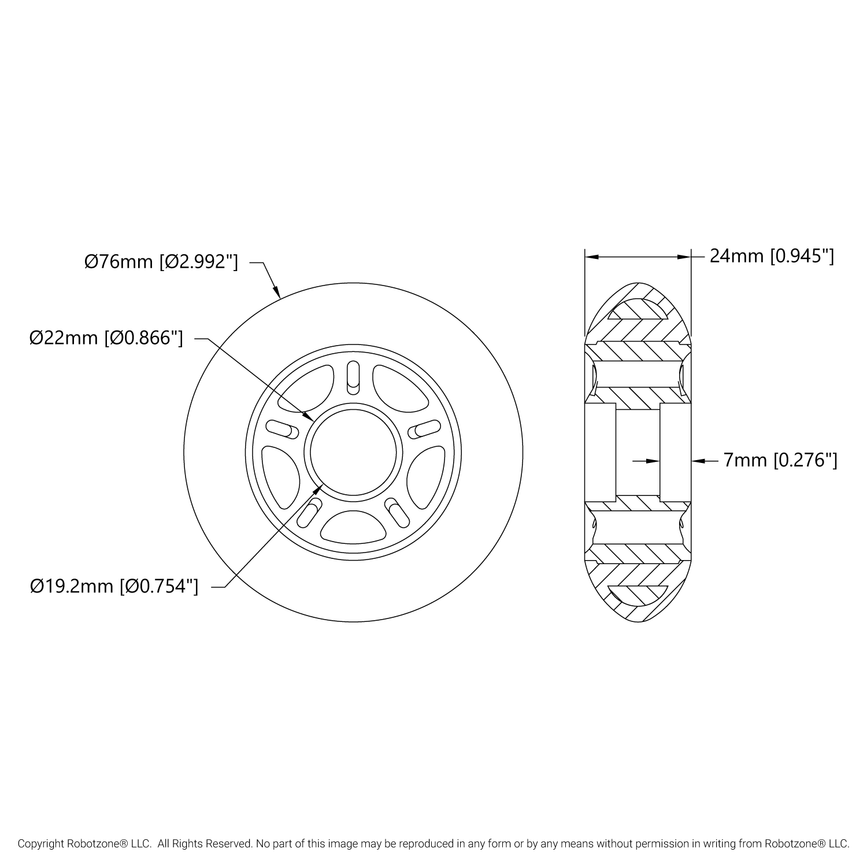

The wheels' central bore allows you to tightly fit a 22mm OD bearing on both sides. Each bearing's outer race will bottom-out against a shoulder when it is fully pressed into place. On the wheels’ outsides you’ll find overmolded polyurethane: a durable, quiet, non-marking material.

Wheel Formulas:

When you know the RPM of this 76mm wheel, you can calculate its linear speed in different units of measurement. Just use our handy formulas below!

Millimeters per Second:
Formula: RPM x 3.98
Example: 20 RPM x 3.98 = 79.6 mm/s

Meters per Second:
Formula: RPM / 251
Example: 20 RPM / 251 = 0.08 m/s

Kilometers per Hour:
Formula: RPM / 70
Example: 20 RPM / 70 = 0.29 km/h

Inches per Second:
Formula: RPM / 6.38
Example: 20 RPM / 6.38 = 3.1 ips

Feet per Second:
Formula: RPM / 76.6
Example: 20 RPM / 76.6 = 0.26 fps

Miles per Hour:
Formula: RPM / 112
Example: 20 RPM / 112 = 0.18 mph

Downloads

Specs

Material Nylon and Polyurethane
Weight 67g (2.37 oz)
Alternate SKU 595618
