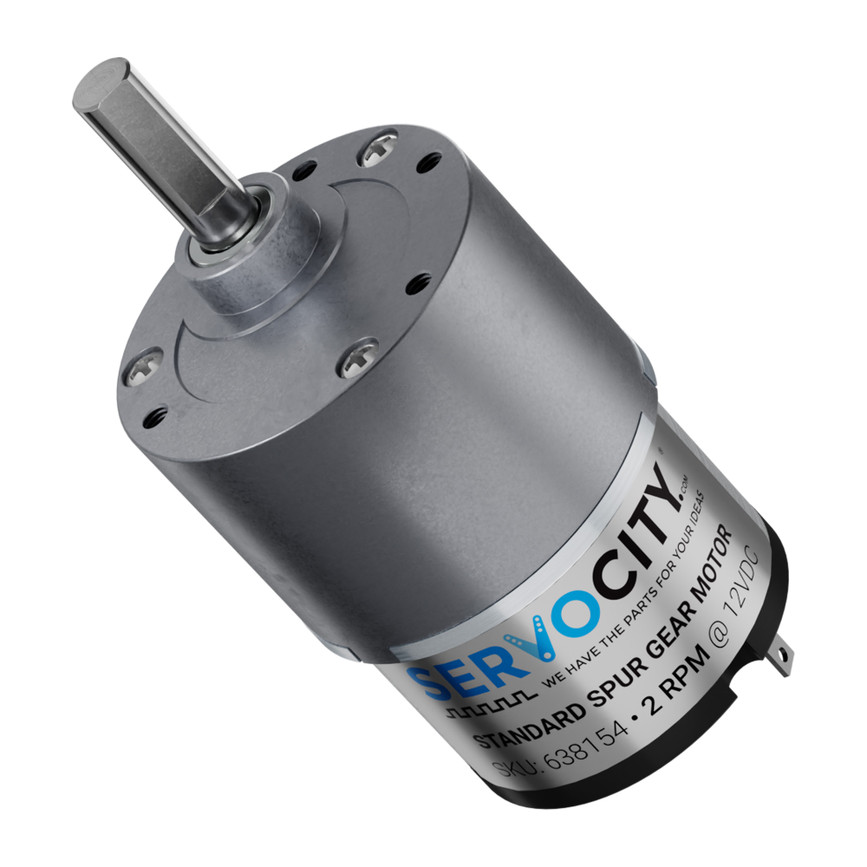

2 RPM Gear Motor
SKU:
$34.99
Tech Tip
Stalling this gearmotor could cause gear damage.
Specs
| Output Shaft Style | D-shaft |
|---|---|
| Motor Type | Brushed DC |
| Output Shaft Support | Bushing |
| Weight | 4.9 oz (139g) |
| Voltage (Nominal) | 12V |
| Voltage Range (Recommended) | 3V - 12V |
| Speed (No Load @ 12VDC) | 2 rpm |
| Current (No Load @ 12VDC) | 45mA |
| Current (Stall @ 12VDC) | 500mA |
| Torque (Stall @ 12VDC) | 1,497 oz-in |
| Gearbox Style | Straight Cut Spur |
| Connector Type | Male Spade Terminal |
| Gear Ratio | 1,500:1 |
