200 mm Stroke 67 lb Thrust Light Duty Linear Actuator
SKU:

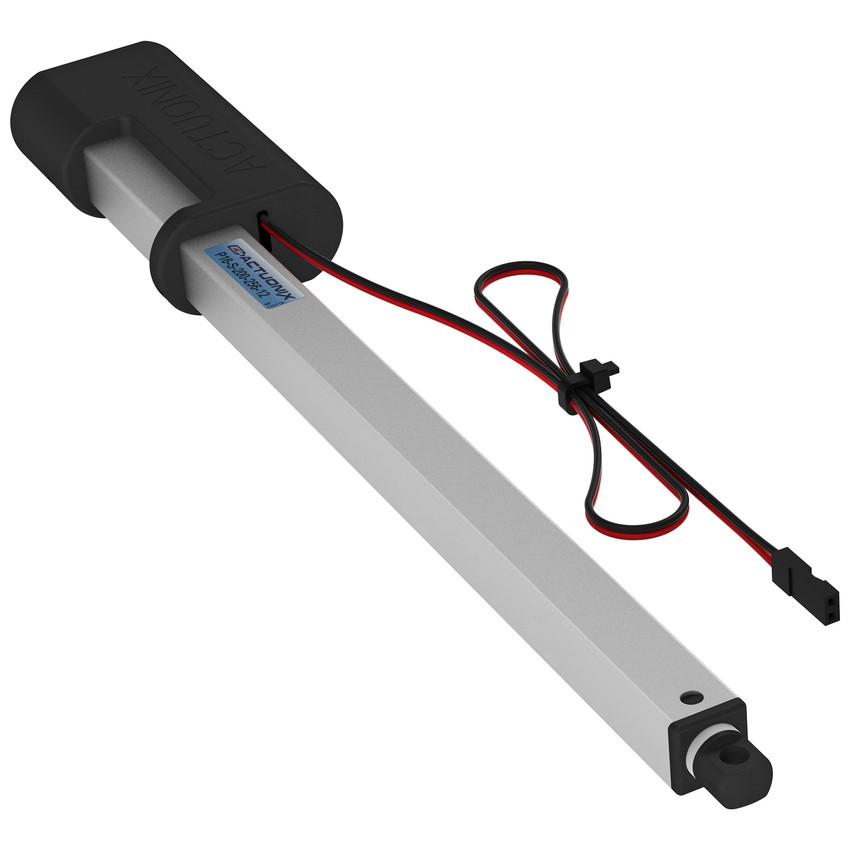

The P16 is the next generation of actuator from Actuonix. Featuring a compact side by side design with a planetary gearbox, these units offer higher speeds, higher forces and longer life than our other units. The P16 offers two gearing options (22:1 and 256:1).
P16-S: With limit switches:
These units are operated by reversing polarity on the actuator's two leads. The "S" series has end of stroke limit switches to that will turn off the unit if it runs into its end stop. These can be run with a DPDT switch, relay or for RC a you can use a brushed DC motor controller.

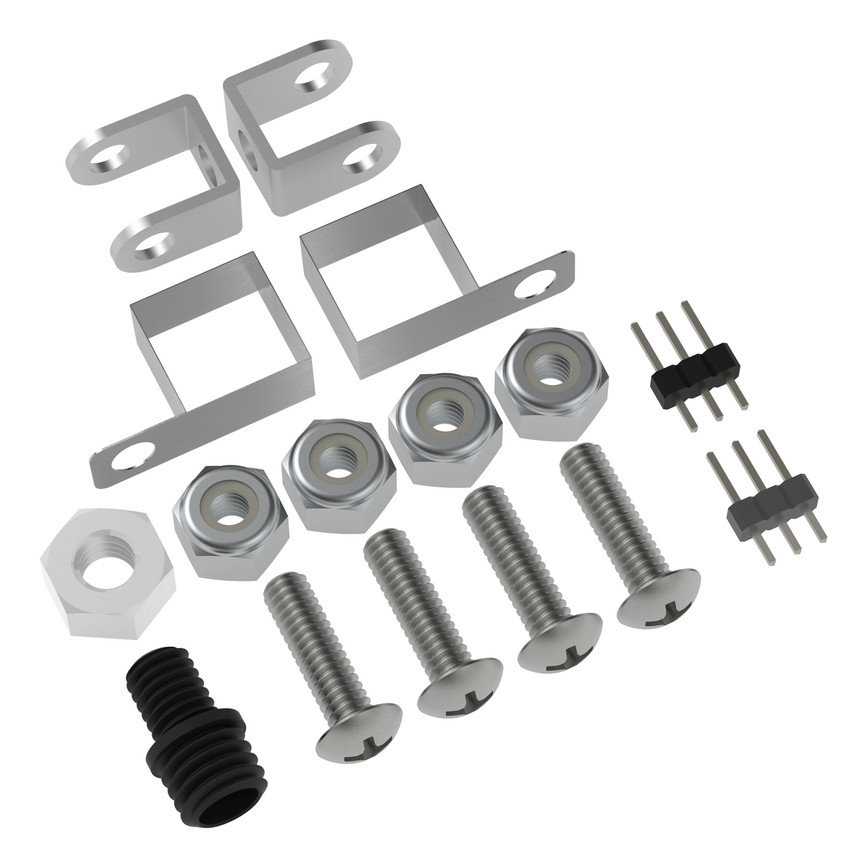

Included Mounting Hardware:
| Part | Qty |
|---|---|
| 3 Position Header 0.100" (2.54mm) Pitch | 2 |
| 8-32 Lock Nut | 4 |
| 8-32 x 0.625 Screw | 4 |
| Square Body Bracket | 2 |
| U-Bracket | 2 |
| M6 x 1.0mm Nylon Nut | 1 |
Compressed
Extended
Hardware Schematic
Specs
| Stroke | 7.9" |
|---|---|
| Operating Temperature | -10°C ~ +50°C |
| Motor Type | DC |
| Feedback Style | 23KΩ / inch |
| Weight | 5.50 oz |
| Voltage Range (Recommended) | 12VDC |
| Speed (No Load)* | 4.8 mm per second |
| Gear Ratio | 256:1 |
| Dynamic Thrust* | 300N |
| Static Load | 500N powered on, >500N powered off |
| Current Drain (Stall)* | 1000mA |
| Duty Cycle | 20% |
