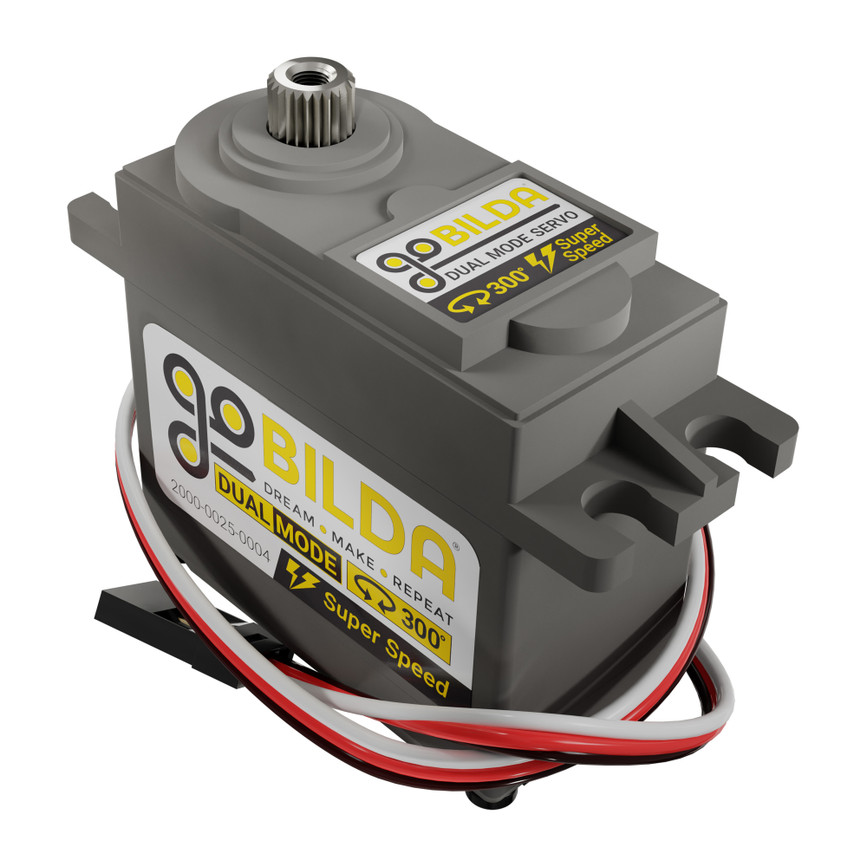

2000 Series Dual Mode Servo (25-4, Super Speed)
SKU:
Meet the Dual Mode ‘SUPER SPEED’ Servo. This servo is essentially an even faster version of the 2000-0025-0003 ‘SPEED’ Servo, reaching speeds of up to 290RPM! Just like the 25-2 and 25-3, this servo boasts two different modes:
Default Mode
In Default Mode the servo is able to rotate while having positioning feedback. In this mode, the PWM signal will determine the position of the servo.
Continuous Rotation Mode
Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.
How Far Will This Servo Rotate in Default Mode?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
135°
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
300°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
300°
Controllers such as the Servo Commander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Tech Tips
Downloads
Specs
| Weight | 58g (2.05oz) |
|---|---|
| Gear Ratio | 67:1 |
| Output Shaft Style | H25T Spline |
| Voltage Range | 4.8V - 7.4V |
| No-Load Speed (4.8V) | 0.055 sec/60° (180RPM) |
| No-Load Speed (6.0V) | 0.043 sec/60° (230RPM) |
| No-Load Speed (7.4V) | 0.035 sec/60° (290RPM) |
| Stall Torque (4.8V) | 55 oz-in (4.0 kg.cm) |
| Stall Torque (6.0V) | 65 oz-in (4.7 kg.cm) |
| Stall Torque (7.4V) | 75 oz-in (5.4 kg.cm) |
| No-Load Current (4.8V) | 190mA |
| No-Load Current (6.0V) | 200mA |
| No-Load Current (7.4V) | 230mA |
| Stall Current (4.8V) | 2,000mA |
| Stall Current (6.0V) | 2,500mA |
| Stall Current (7.4V) | 3,000mA |
| Max PWM Range | 500-2500μsec |
| Max PWM Range (Continuous) | 1000 - 2000μsec |
| Travel per μsec | 0.15°/μsec |
| Max Rotation (Default Mode) | 300° |
| Pulse Amplitude | 3-5V |
| Deadband Width | 4μsec |
| Motor Type | Brushed DC |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearing |
| Gear Material | Steel |
| Wire Length | 11.81" (300mm) |
| Wire Gauge | 22AWG |
| Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |
| Servo Size | Standard |
| Direction with Increasing PWM Signal | Clockwise |
