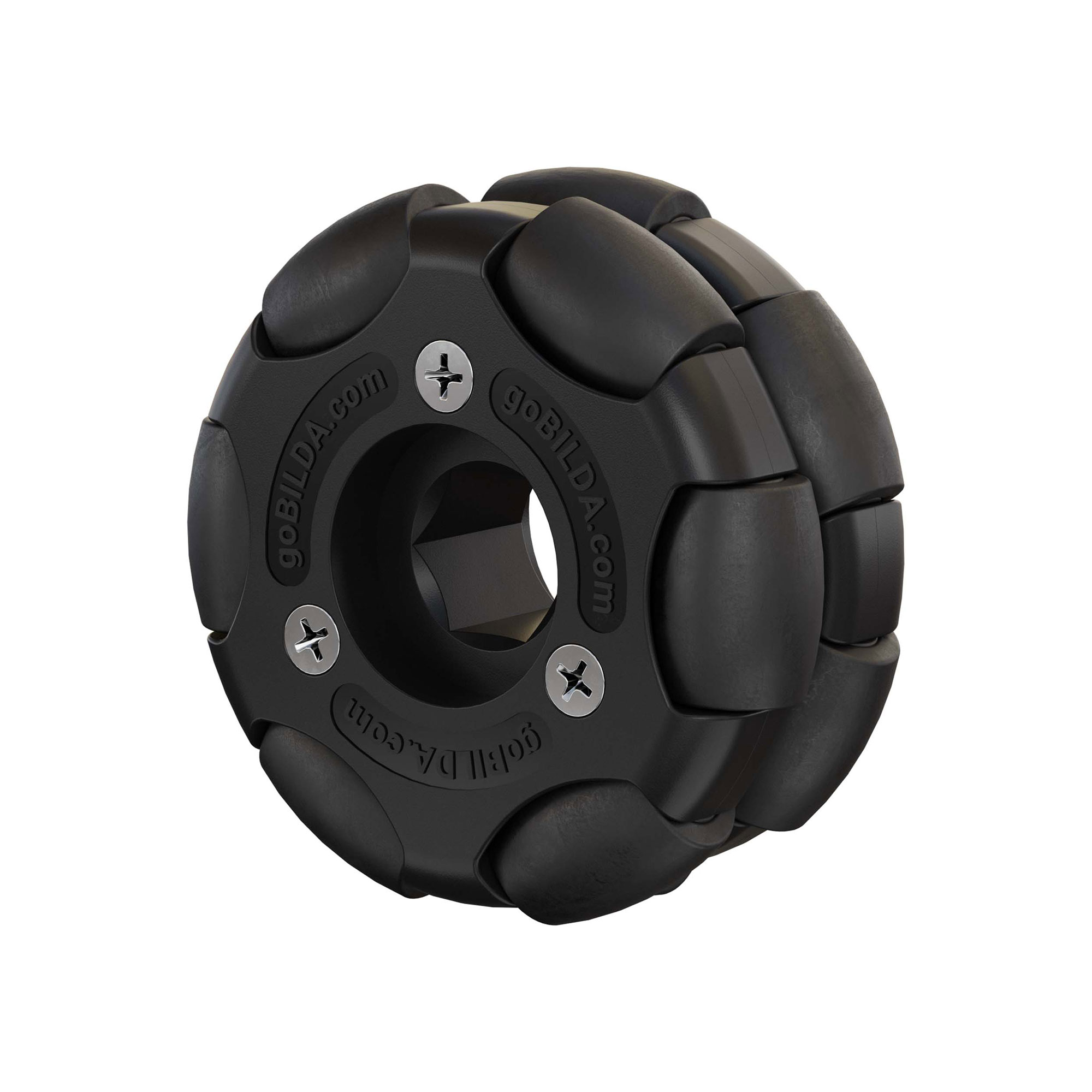

3624 Series Omni Wheel (8mm REX™ Bore, 32mm Diameter, 50A Durometer)
SKU:
This 32mm Diameter Omni Wheel possesses two rows of 50A durometer rollers that have excellent traction on soft floor tiles, such as those used in the First Tech Challenge (FTC). The purpose-engineered grip is just one of several nifty proficiencies:

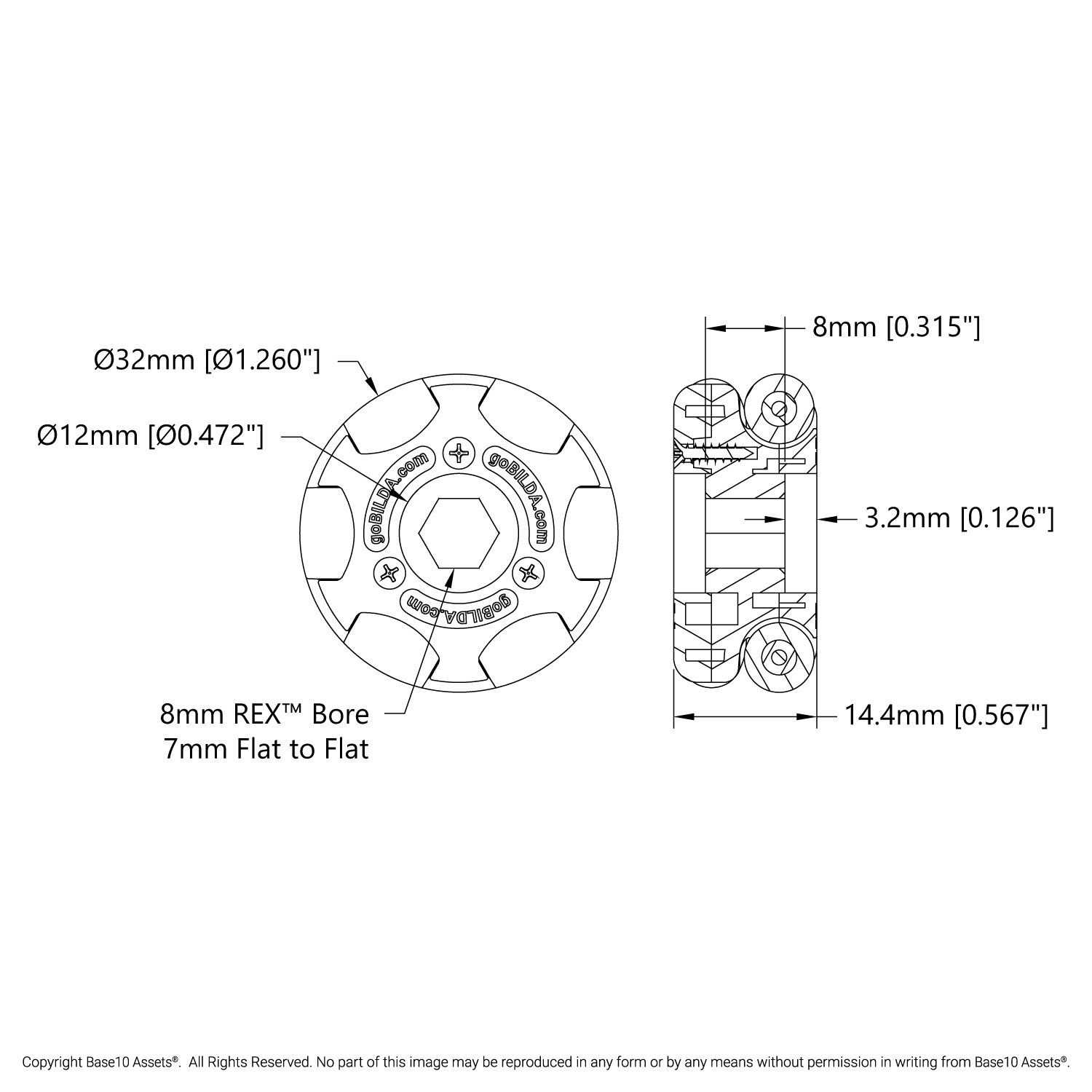

- The wheel core’s 8mm REX™ bore provides positive drive on 8mm REX™ shafting.
- The 12mm recesses on each side are great for seating 12mm OD bearings in a dead-axle setup (on shafting that’s 6mm diameter or smaller).
- The narrow wheel width allows for easy implementation, even when space is at a premium.

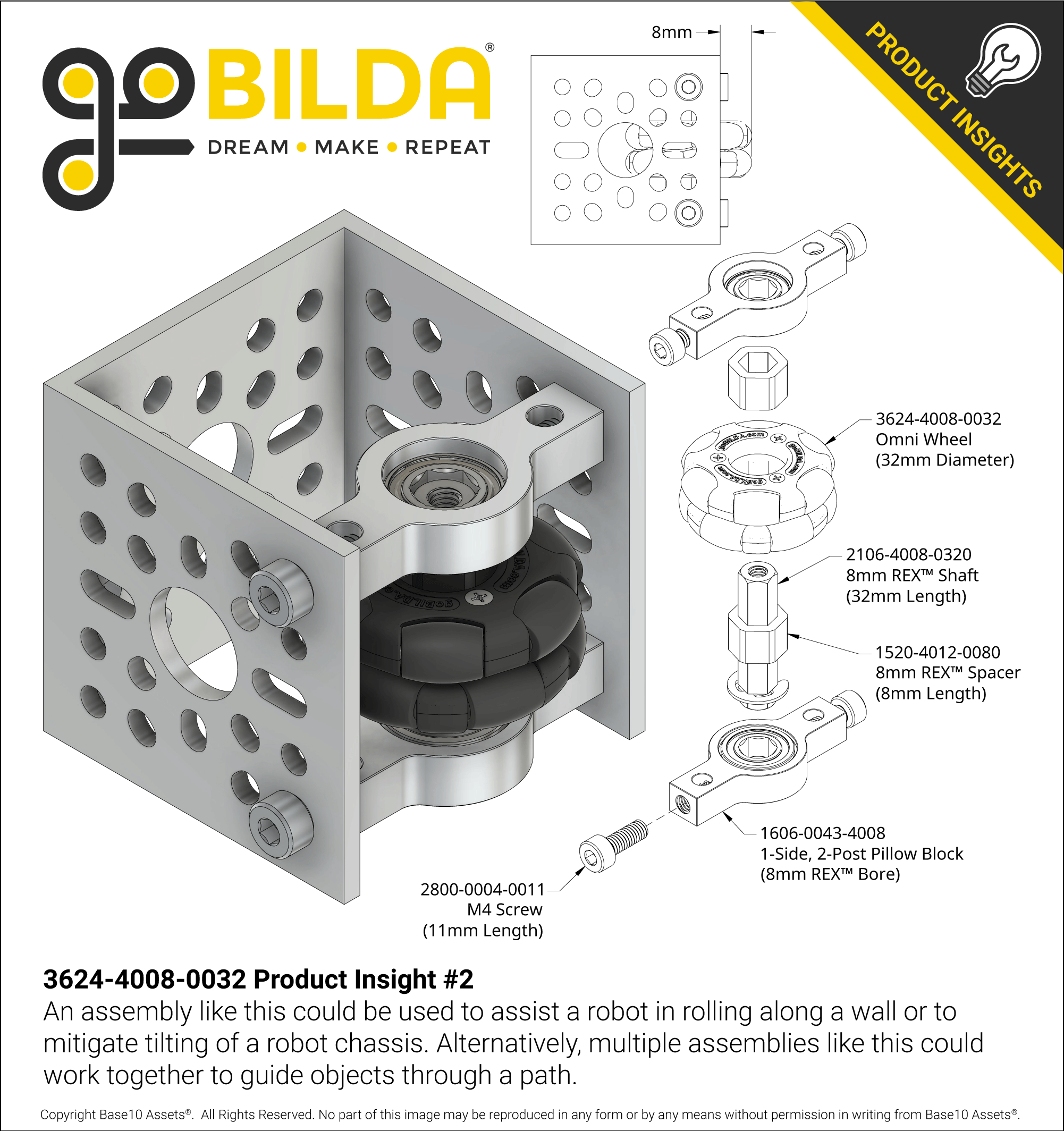

This particular Omni Wheel is the same one used in the goBILDA® 4-Bar Odometry Pod (SKU: 3110-0001-0002).
Buildling an Odometry Pod?
This wheel is perfect for an odometry setup…which is why goBILDA® put it in one! The 4-Bar Odometry Pod comes fully assembled, clearing time in your schedule for innovation in other areas of design.
The Pod offers easy integration with goBILDA® 1120 Series U-Channel, all the included hardware necessary to mount it, and internal packaging that creates smoother rotation and eliminates backlash.
Downloads
Specs
| Weight | 11g |
|---|---|
| Material | Plastic with Rubber Rollers |
| Durometer | 50A |
