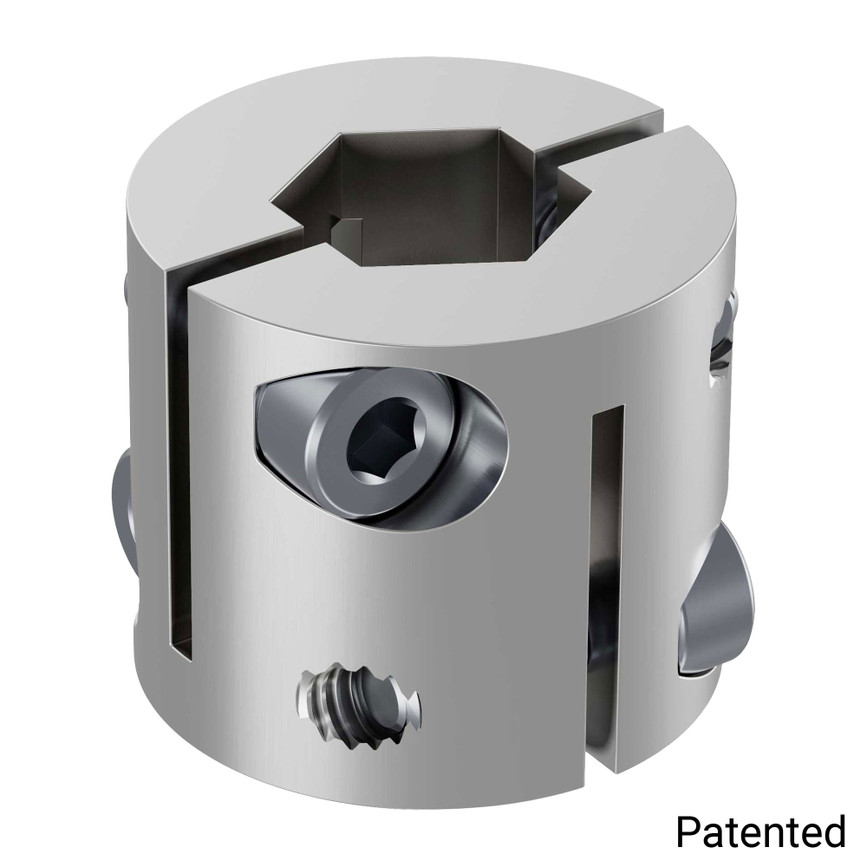

4007 Series Hyper Coupler (8mm REX™ Bore to 12mm REX™ Bore)

SKU:
$8.99

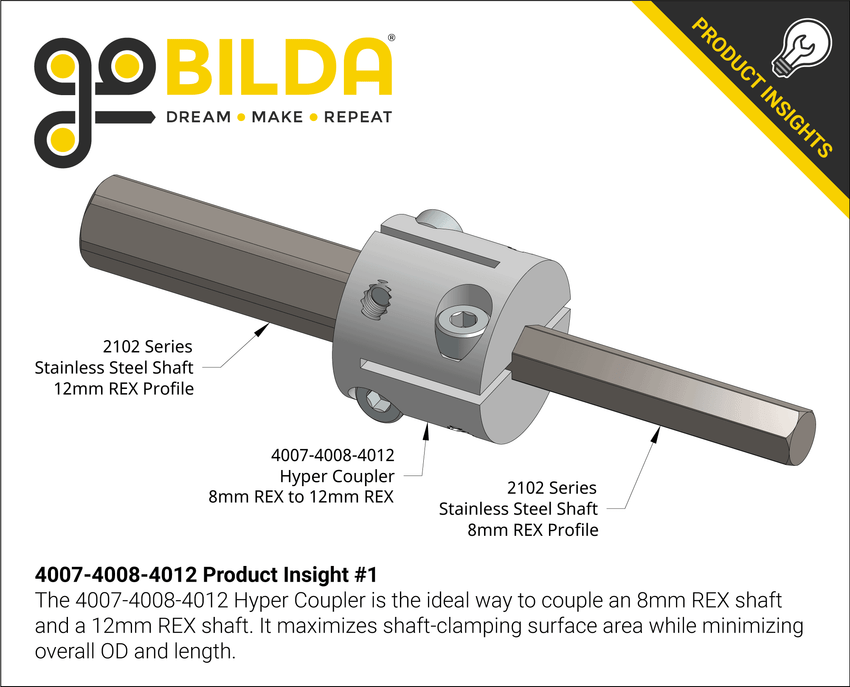

This 8mm REX™ to 12mm REX™ coupler is a compact, balanced way to fasten an 8mm REX™ shaft to a 12mm REX™ shaft.  The 21mm overall length allows you to slide the coupler down inside of 1120 Series Channel even when one of the two shafts is inserted half-way through the inside cavity.  The bores of the coupler are profile-matched to create a positive drive.  That, in combination with four pinch bolts, provides an extremely solid connection that is able to hold loads in both the radial and axial directions with ease.

Downloads

Specs

Weight 24g
Material Aluminum
Finish Clear Anodized
IP Patented
