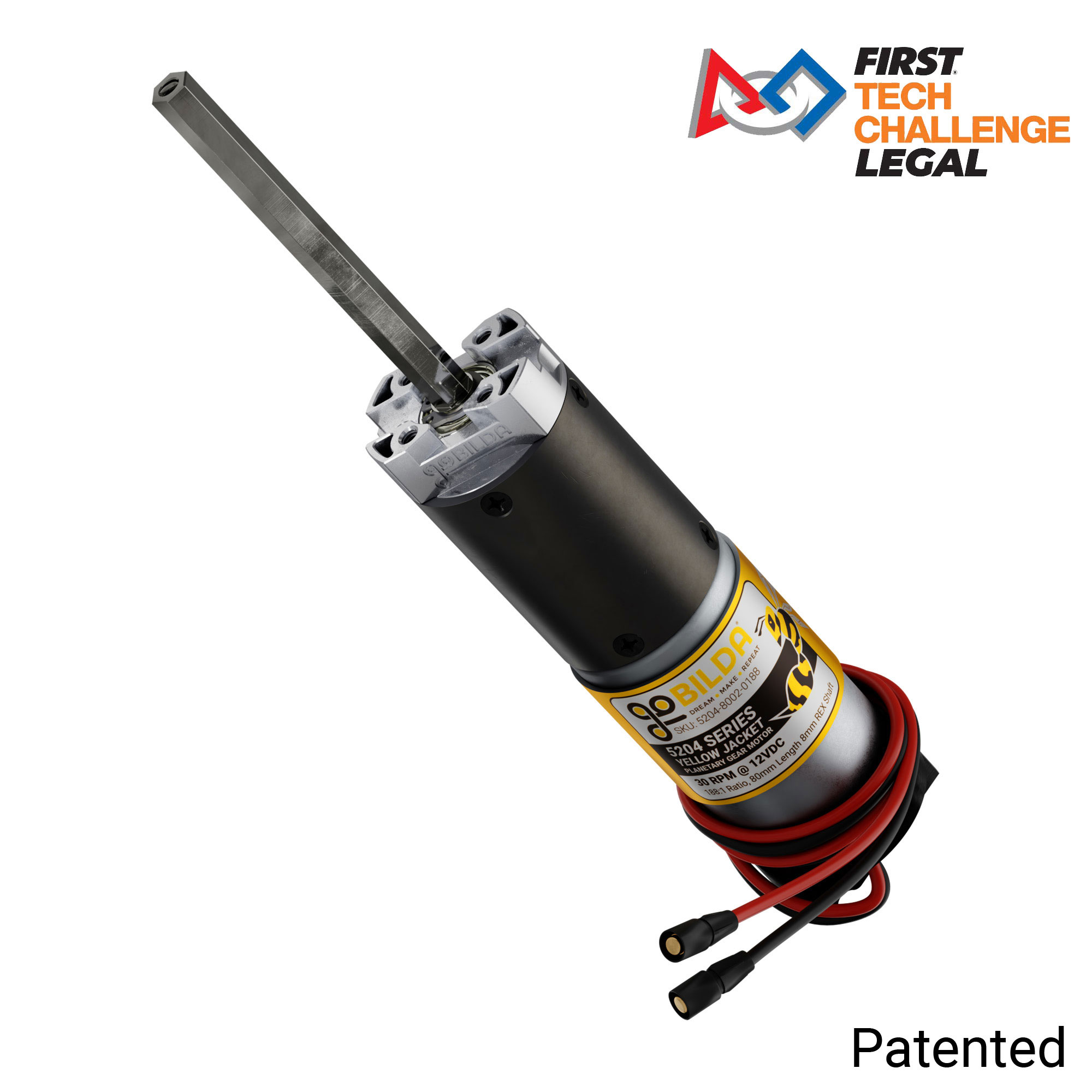

5204 Series Yellow Jacket Planetary Gear Motor (188:1 Ratio, 80mm Length 8mm REX Shaft, 30 RPM, 3.3 - 5V Encoder)
SKU:
$46.99
Downloads
Specs
| Motor Size | RS-555 |
|---|---|
| Motor Type | Brushed DC |
| Nominal Voltage | 12VDC |

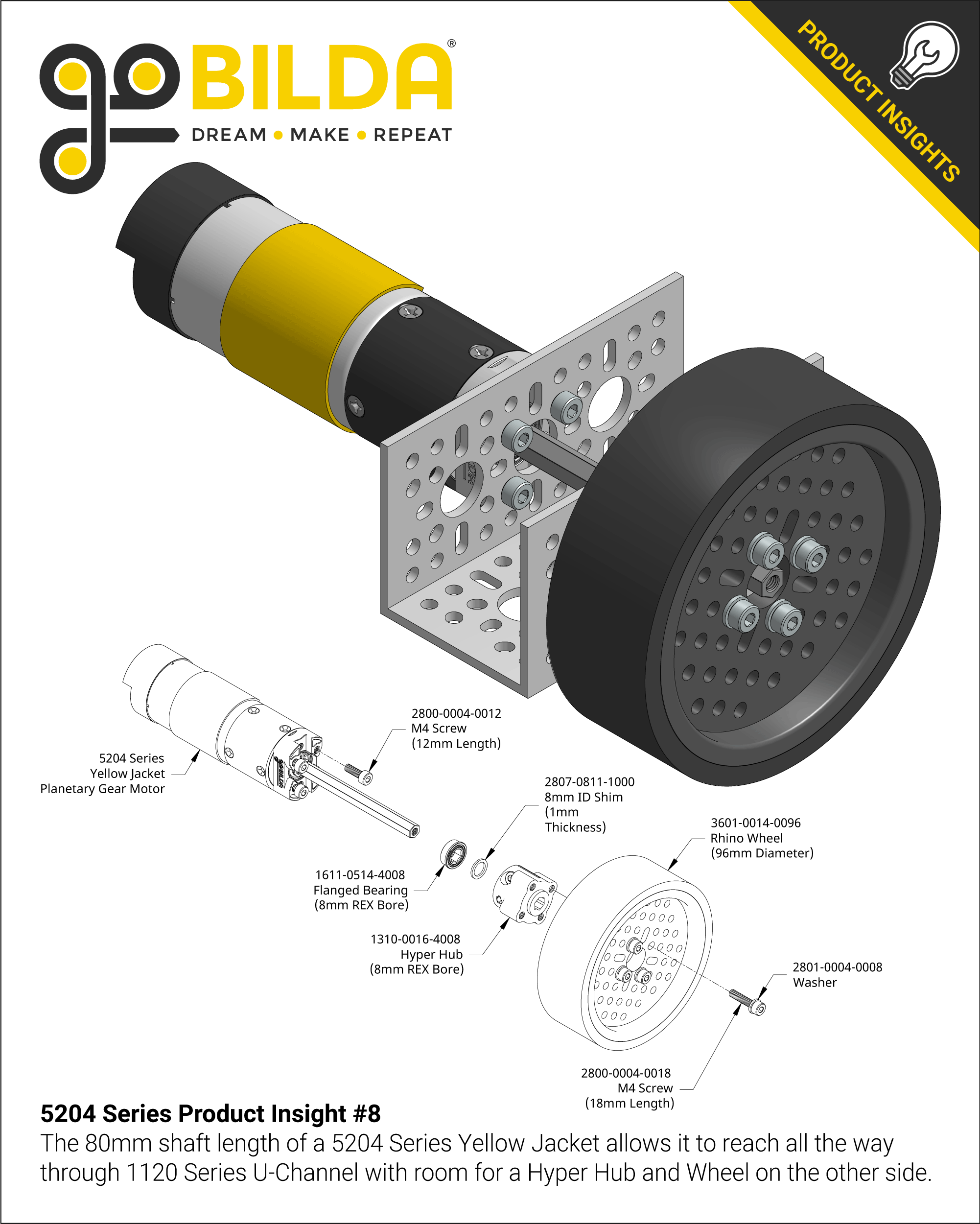

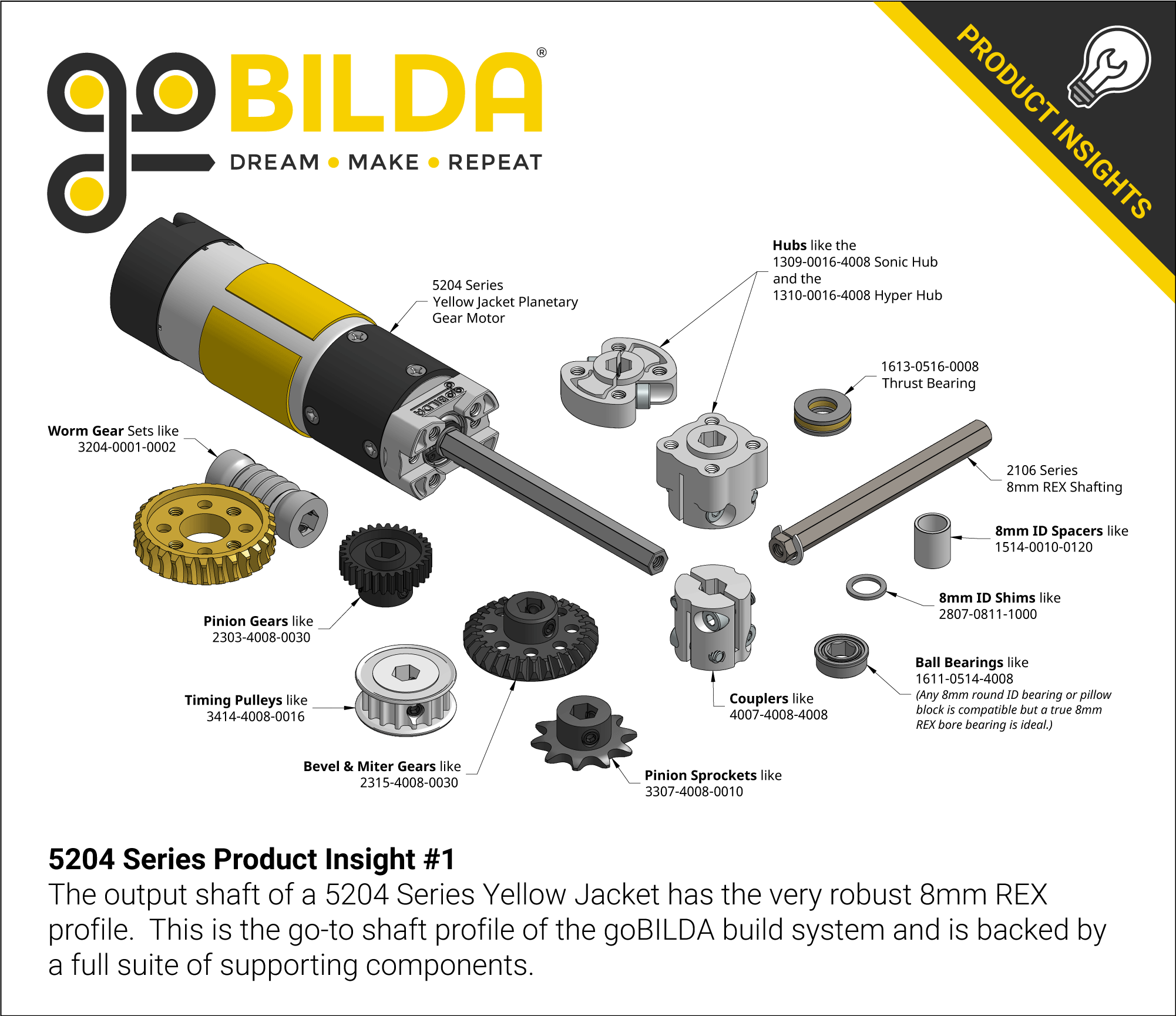

| Output Shaft | 8mm REX™, 80mm Length |
| Gearbox Style | Planetary |
| Gear Ratio | 188:1 |
| Gear Material | Steel |
| No-Load Speed @ 12VDC | 30 RPM |
| No-Load Current @12VDC | 0.25A |
| Stall Current @12VDC | 9.2A |
| Stall Torque @12VDC | 250 kg.cm (3,470 oz-in) |
| Wire Length | 470mm (including connectors) |
| Wire Gauge | 18AWG |

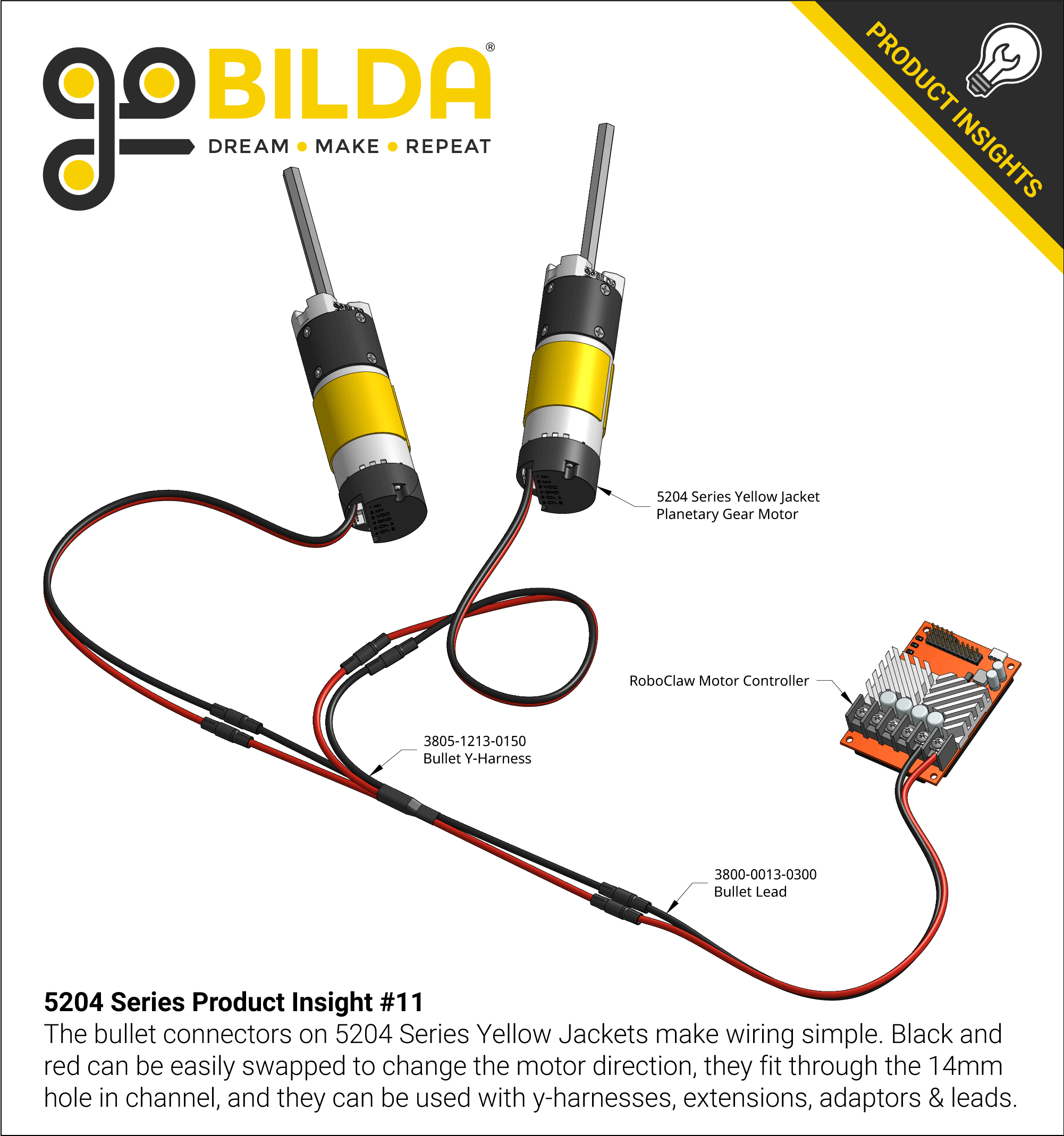

| Motor Connector Type | 3.5mm FH-MC Bullet Connectors |

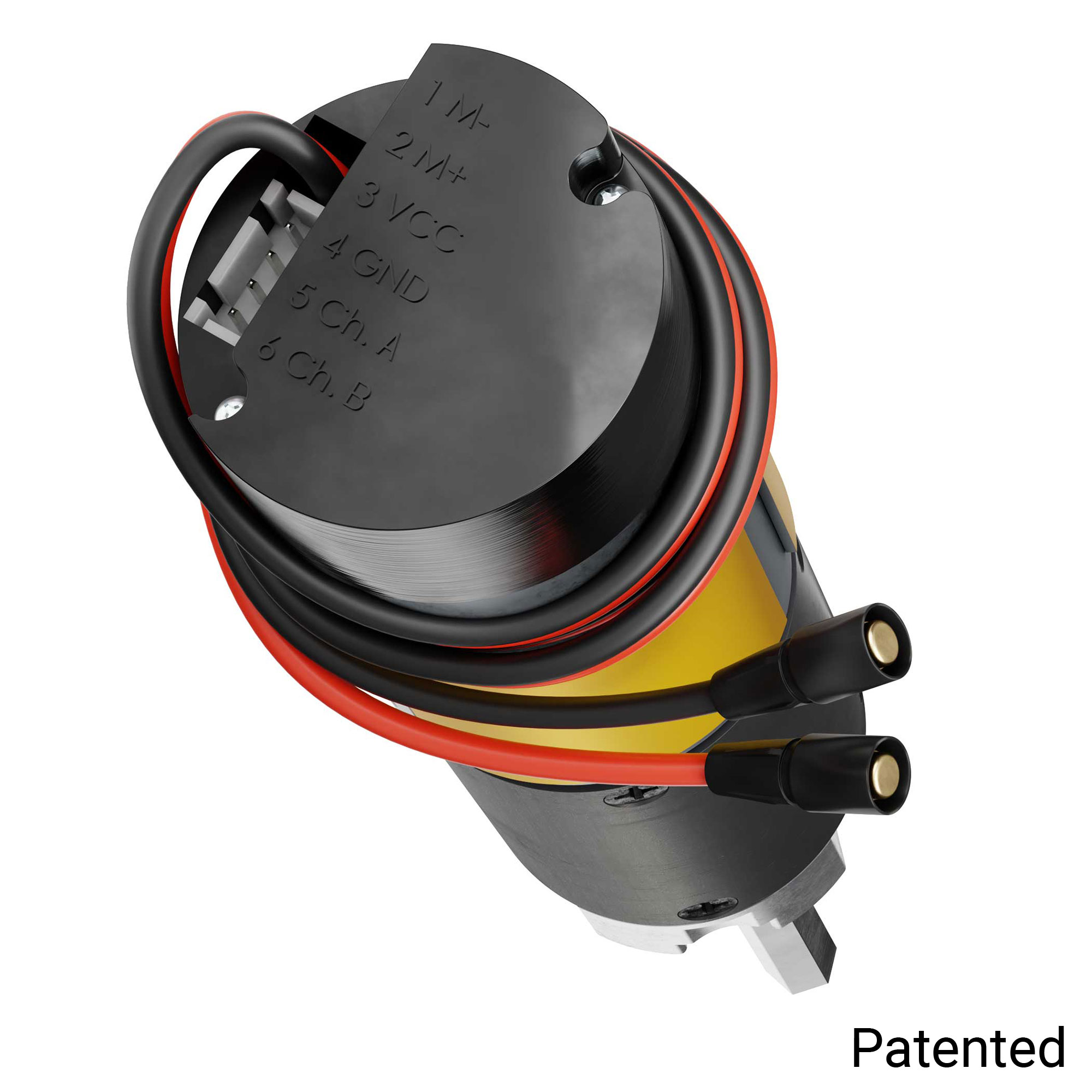

| Encoder Connector Type | 4-Pos JST XH [FH-MC] |
| Encoder Type | Relative, Quadrature |
| Encoder Sensor Type | Magnetic (Hall Effect) |
| Encoder Voltage Range | 3.3 - 5VDC |
| Encoder Resolution | 5281.1 PPR at the Output Shaft |
| Weight | 543g |
| Encoder Resolution Formula | ((((((1+(46/17))) * (1+(46/17))) * (1+(46/17))) * (1+(46/17))) * 28) |
| IP | Patented |
