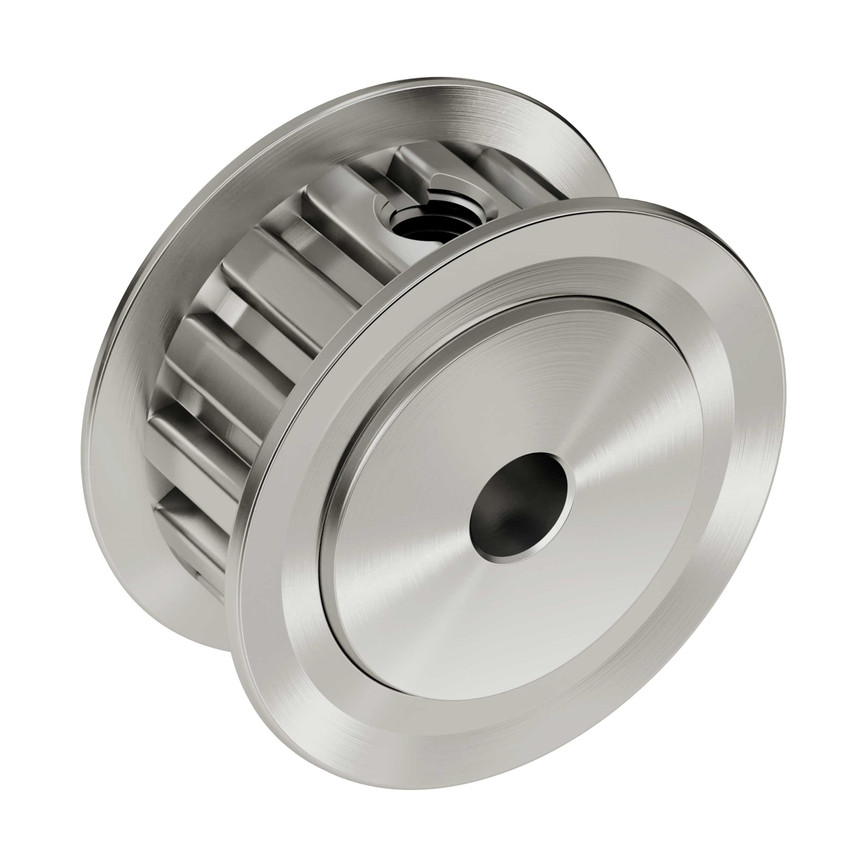

5mm 15 Tooth Pinion Pulley

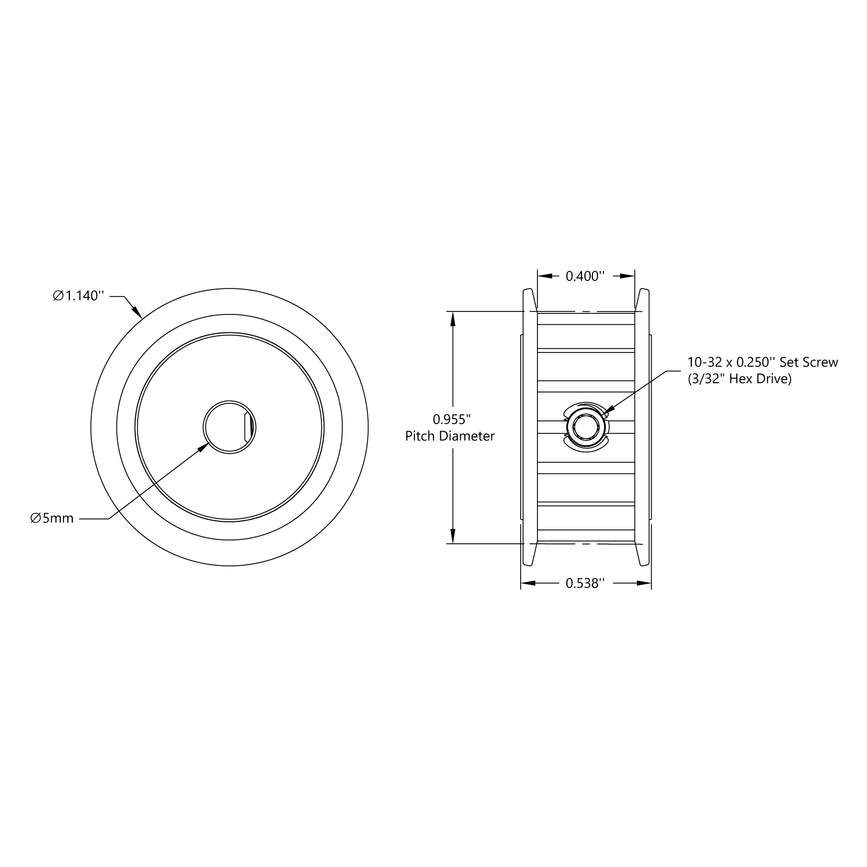

This 15 tooth, XL (⅕”) pitch timing pulley has a 5mm bore so that it can be mounted on to a 5mm round or 5mm D-profile shaft. The 10-32 set-screw will tighten down on the shaft to provide a snug hold and keep the pulley from rotating independently of the shaft it’s mounted to. The 0.4” inside width provides space for a ⅜” belt-width and the set-screw nests down inside the teeth so that it does not interfere with the belt. The pulley flanges are crimped on and will keep your belt from walking if your pulleys are not aligned properly.

This pinion pulley uses a 3/32” Hex Key (sold separately).
