Belt Drive Pan
SKU:

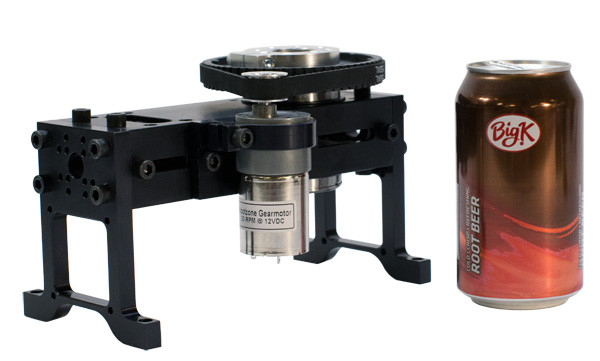

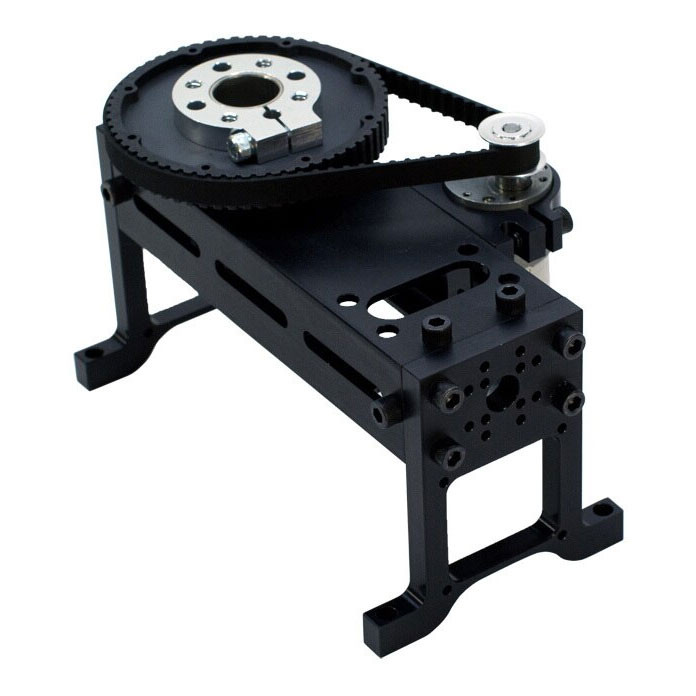

This system offers a simple way to reduce the speed and increase the torque of a gearmotor. This pan system offers a 6:1 reduction through the XL series timing pulleys and timing belt. The all aluminum framework is able to handle up to 100lbs with ease. Dual ABEC-5 ball bearings support the 1" OD hollow stainless steel shaft which allows wires and cables to be routed through the axis of rotation. The toothed Kevlar belt ensures minimal backlash and isolates noise transmitted from the gearmotor. The Super Duty Belt Drive Pan System is compatible with our Standard Spur Gear motors. This system comes fully assembled without the gearmotor. Motor sold separately.
Speed Reduction Example:
6 RPM Gearmotor / 6:1 Reduction Ratio = 1 RPM Final Speed
Kit includes:
(1) Aluminum Frame w/ Ball Bearings
(1) 1” Bore Snap-Ring Tube
(1) 60 Tooth XL Series Timing Pulley
(1) 10 Tooth XL Series Timing Pulley (6mm)
(1) 150XL 3/8” Width Kevlar Timing Belt
(1) 1” ID Shim Washers
(1) 1” ID Clamping Hub
Specs
| Motor Included | No |
|---|---|
| Maximum Payload | 100 lbs |
| Weight | 36.6 oz (2.29 lbs) |
| Motor Compatibility | Standard Spur Gearmotors |
| Ratio | 6:1 |
