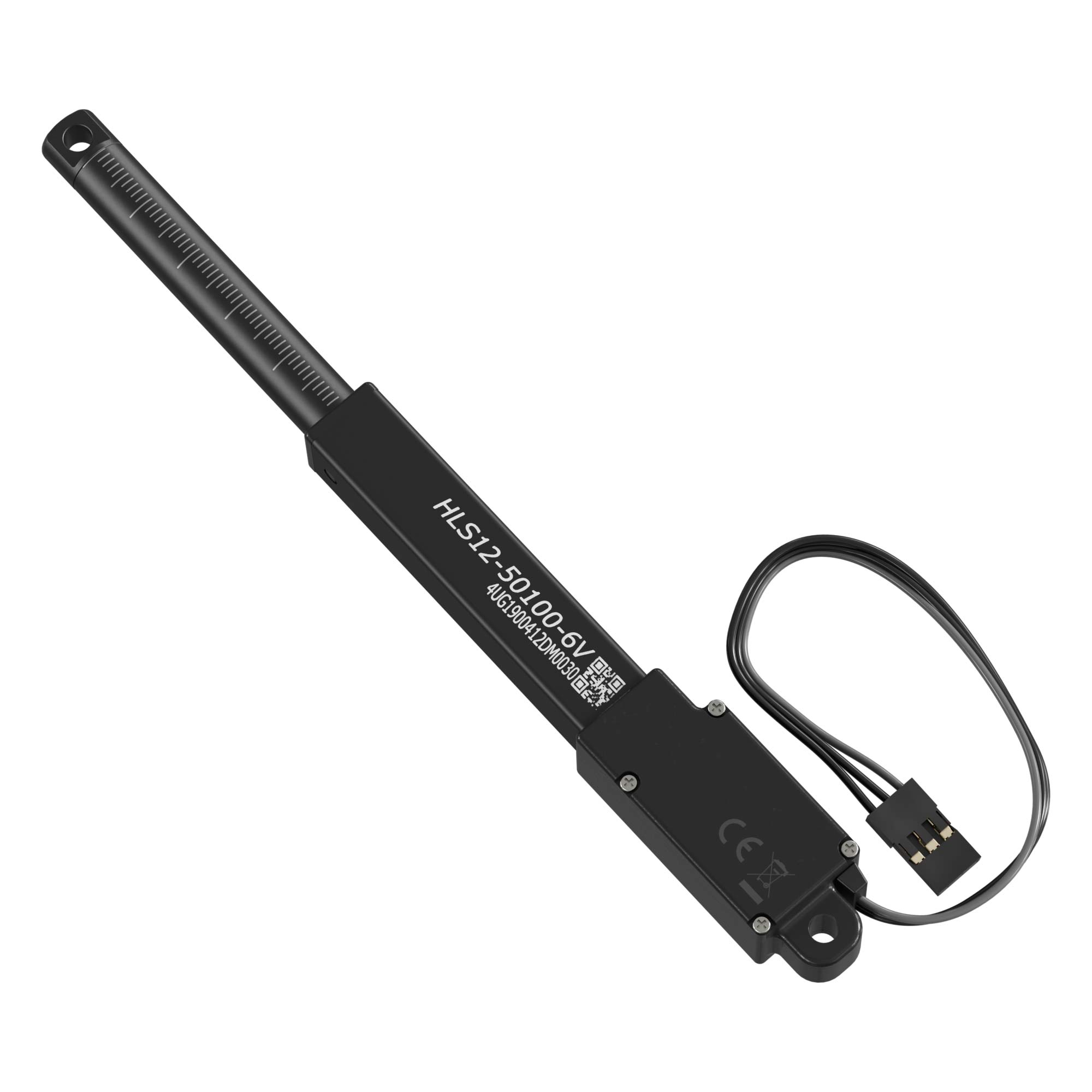

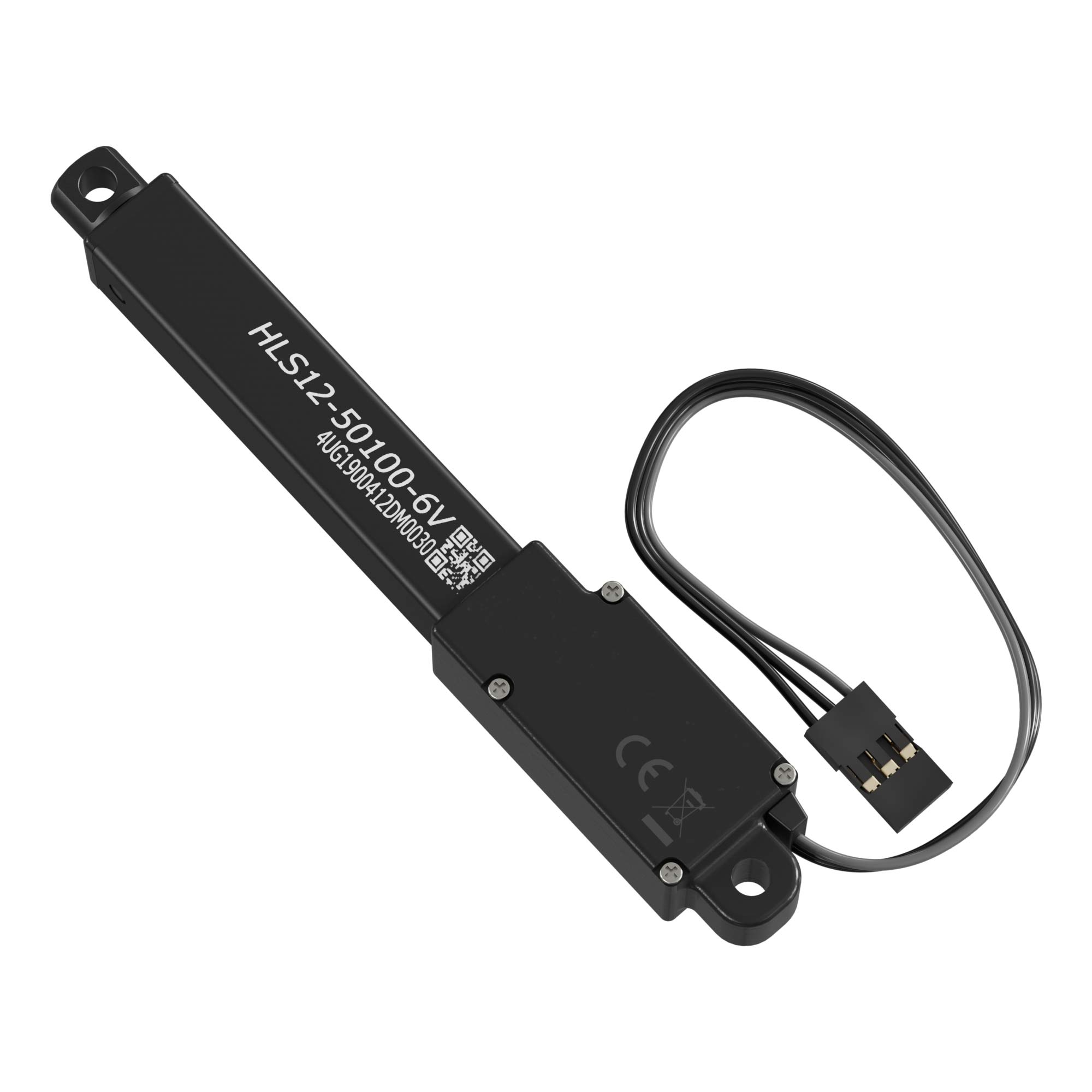

Hitec Linear Servo (2.0" Stroke, 0.6"/sec, 11.5lbs Thrust)
SKU:
$99.99
Downloads
Specs
| Weight | 1.3oz |
|---|---|
| Stroke | 2.0" |
| Gear Ratio | 100:1 |
| Voltage Range | 4.8 - 7.4VDC |
| Operating Temperature | -10°c ~ +50°c |
| Motor Type | Brushed DC |
| Feedback Style | Digital |
| Wire Length | 6.3" |
| Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |
| Manufacturer Part Number | 41002 |
| Max PWM Range | 1050-1950μsec |
| Speed (No Load) @ 6VDC | 13.0mm/sec | 0.5"/sec |
| Speed (No Load) @ 7.4VDC | 16.1mm/sec | 0.6"/sec |
| Thrust @ 6VDC | 4.2kg | 9.3lb |
| Thrust @ 7.4VDC | 5.2kg | 11.5lb |
| Current Drain (Stall) @ 6VDC | 500 mA |
| Current Drain (Stall) @ 7.4VDC | 620 mA |
