HS-422 Servo-Clockwise (stock)-Stock Rotation
SKU:

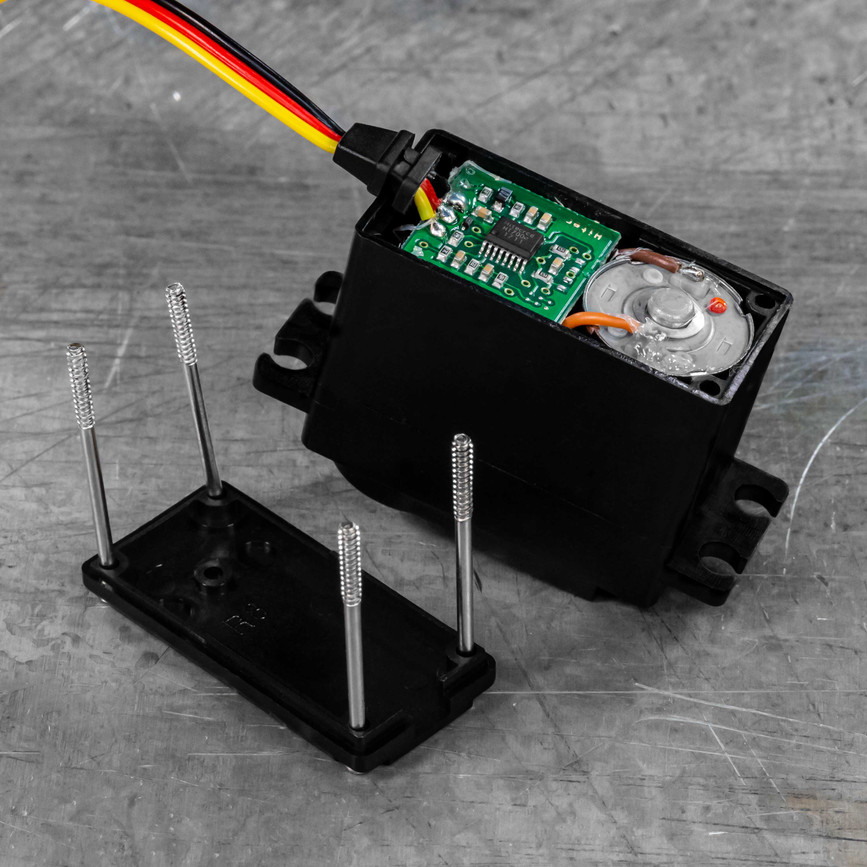

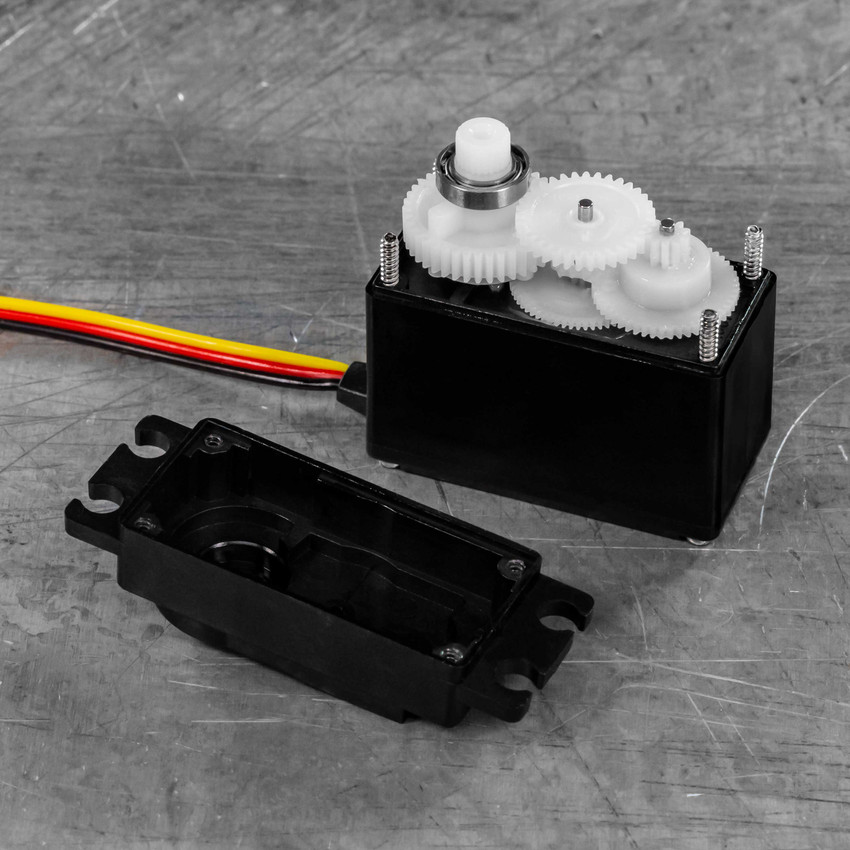

The HS-422 is one of the most durable and reliable servos Hitec has ever offered. With its dual iron-oilite bushings, high impact resin gear train and high performance circuitry, the HS-422 features excellent centering and resolution.
How Far Will This Servo Rotate?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
87°
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
195°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
195°
Controllers such as the Servo Commander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Tech Tips
Specs
| Output Shaft Style | C24T Spline |
|---|---|
| Voltage Range | 4.8V - 6.0V |
| No-Load Speed (4.8V) | 0.21sec/60° |
| No-Load Speed (6.0V) | 0.16sec/60° |
| Stall Torque (4.8V) | 45.82 oz-in. (3.3kg.cm) |
| Stall Torque (6.0V) | 56.93 oz-in. (4.1kg.cm) |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Current Drain - idle (4.8V) | 8mA |
| Current Drain - idle (6.0V) | 8.8mA |
| Current Drain - no-load (4.8V) | 150mA |
| Current Drain - no-load (6V) | 180mA |
| Continuous Rotation Modifiable | Yes |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 8µs |
| Motor Type | 3 Pole Ferrite |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Oilite Bushing |
| Gear Material | Nylon |
| Wire Length | 11.81" (300mm) |
| Weight | 1.6oz (45.5g) |
| Wire Gauge | 25AWG |
| Servo Size | Standard |
| Max Rotation | 195° |
| Travel per µs | 0.0975°/μsec |
| Max PWM Signal Range | 500-2500μsec |
