Intake Wheel Starter Pack (8mm REX™ Bore)
SKU:
Take it all in: this 21-piece set of components is the perfect starting point for building an intake assembly! Both super-sticky Gecko™ Wheels and sure-stepping Boot Wheels are here across three pairs each of different diameters, while smaller Roller Wheels—also present in a variety of diameters—provide especially compact options for gripping action.
The majority of wheels in this bundle have a built-in 8mm REX™ bore for dependable drive on signature goBILDA™ 8mm REX shafting. And for its two pairs of hub-mount Gecko™ Wheels, this bundle includes four 8mm REX™ Bore Sonic Hubs and all the hardware you need to attach them to your hub-mount Gecko™ Wheels!

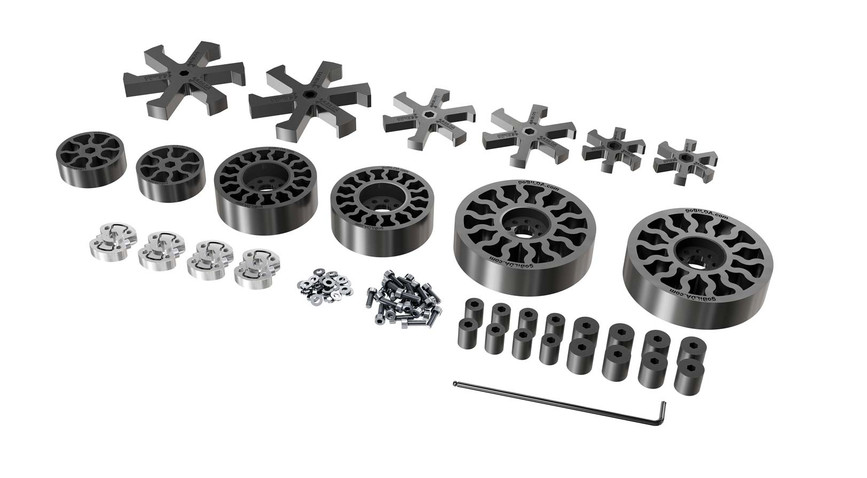

Bundle Contents:
| SKU | Qty | Name |
|---|---|---|
| 1309-0016-4008 x 4 | 4 | 1309 Series Sonic Hub (8mm REX™ Bore) |
| 2800-0004-0012 x 1 | 1 | M4 x 0.7mm Zinc-Plated Socket Head Screw (12mm Length) - 25 Pack |
| 2801-0004-0008 x 1 | 1 | 2801 Series Zinc-Plated Steel Washer (4mm ID x 8mm OD) - 25 Pack |
| 3615-4008-0048 x 2 | 2 | 3615 Series Boot-Wheel (8mm REX™ Bore, 48mm Diameter, 30A Durometer) |
| 3615-4008-0072 x 2 | 2 | 3615 Series Boot-Wheel (8mm REX™ Bore, 72mm Diameter, 30A Durometer) |
| 3615-4008-0096 x 2 | 2 | 3615 Series Boot-Wheel (8mm REX™ Bore, 96mm Diameter, 30A Durometer) |
| 3618-4008-0012 x 1 | 1 | Intake Roller Wheel (8mm REX™, 12mm Diameter, 16mm Width, 30A Durometer) - 8 Pack |
| 3618-4008-0016 x 1 | 1 | Intake Roller Wheel (8mm REX™, 16mm Diameter, 16mm Width, 30A Durometer) - 8 Pack |
| 3613-4008-0048 x 2 | 2 | 3613 Series Gecko® Wheel (8mm REX™ Bore, 48mm Diameter) |
| 3613-0014-0072 x 2 | 2 | 3613 Series Gecko® Wheel (14mm Bore, 72mm Diameter) |
| 3613-0014-0096 x 2 | 2 | 3613 Series Gecko® Wheel (14mm Bore, 96mm Diameter) |
| 5027104001 x 1 | 2 | Wera Tools 3mm Ball-End Hex-Plus L-Key |
