LED Headlight (400 Lumens, Dimmable, PWM Controlled)

Add exactly the lighting you need to your project with a brilliant LED Headlight you can operate with your favorite servo controller! This dimmable light has a maximum luminosity of 400 lumens and boasts a wide range of implementation options.

Intelligent Illumination

Controlling this LED Headlight is as easy as controlling a servo! Just plug it into a servo port, and you’ll get fine-grained PWM control of the LED brightness, from full “off” to full “on.” This allows you to dial-in the light you need in a snap—such as when operating the headlights of a rugged R/C explorer chassis like the Overlander-4.

Input/Output Ports

The Headlight possesses two each of TJC8 connector ports and JST-PH connector ports. All ports can act as either input or output ports, and all ports use PWM as their communication protocol.

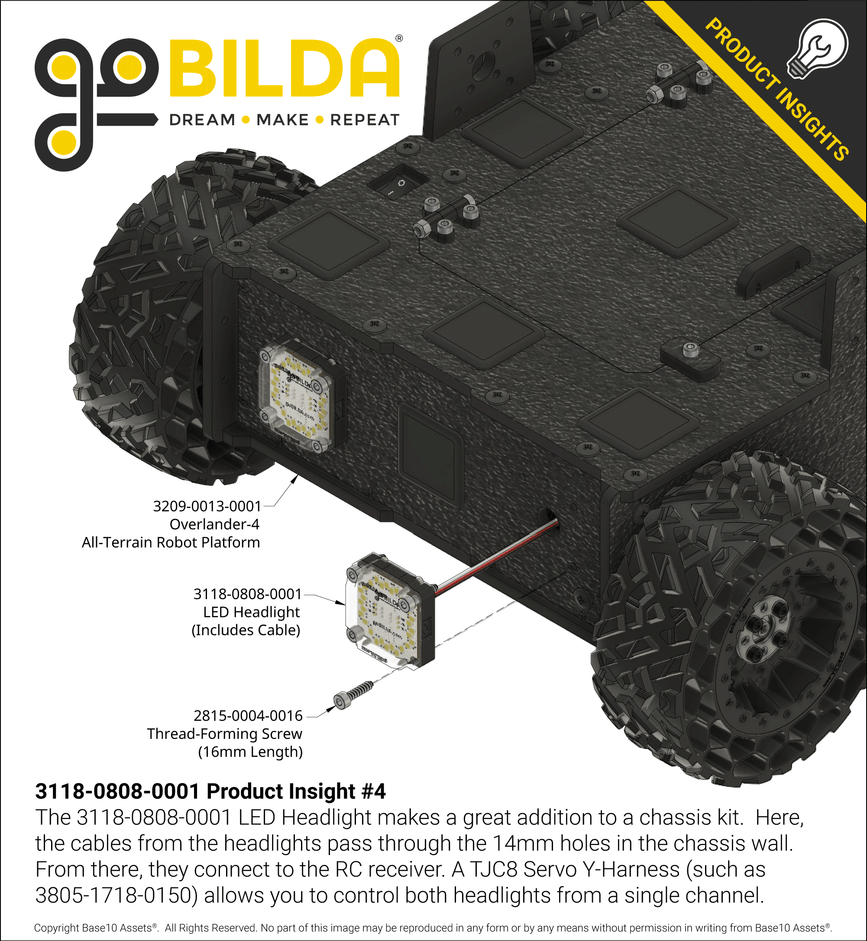

It’s super easy to daisy-chain several lights for multi-light luminosity! The two TJC8 ports, located opposite one another, offer an immediately accessible connection option. And on the more subtle side of implementation, the JST PH connectors on the back of the Headlight conveniently align with the 14mm hole commonly found on goBILDA® components. Utilizing the JST PH connectors on the back provides for a clean and hidden wiring option for your chassis project!

Easy Attachment

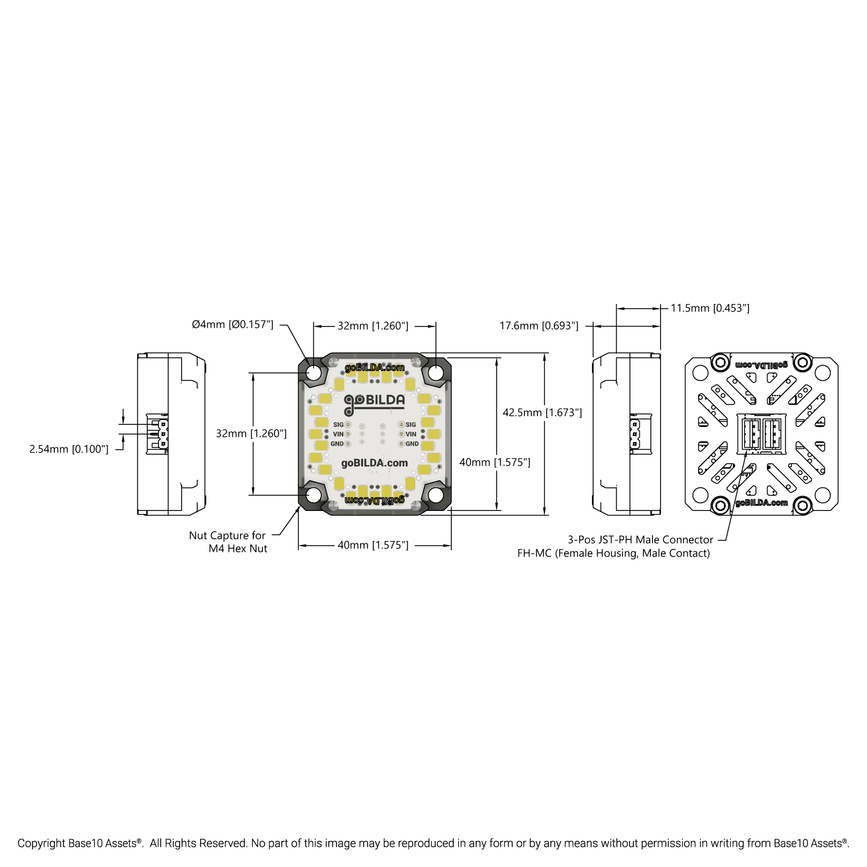

The Headlight possesses four M4 thru-holes on the goBILDA® 32mm square pattern. Each thru-hole has a hex counterbore for the easy capture of hex head screws and locknuts.
