NEMA 23 Stepper Motor Mount

SKU:

DISCONTINUED This product has been discontinued.

Consider This Alternative:

While its mounting holes are goBILDA® (metric) instead of Actobotics® (imperial), please consider this otherwise similar alternative.

1700-0016-0023 - 1700 Series Face Tapped Stepper Motor Mount (NEMA 23)
1700-0016-0023
1700 Series Face Tapped Stepper Motor Mount (NEMA 23)
$9.99
$8.99
Discontinued

Currently Sold Out

This product has been discontinued

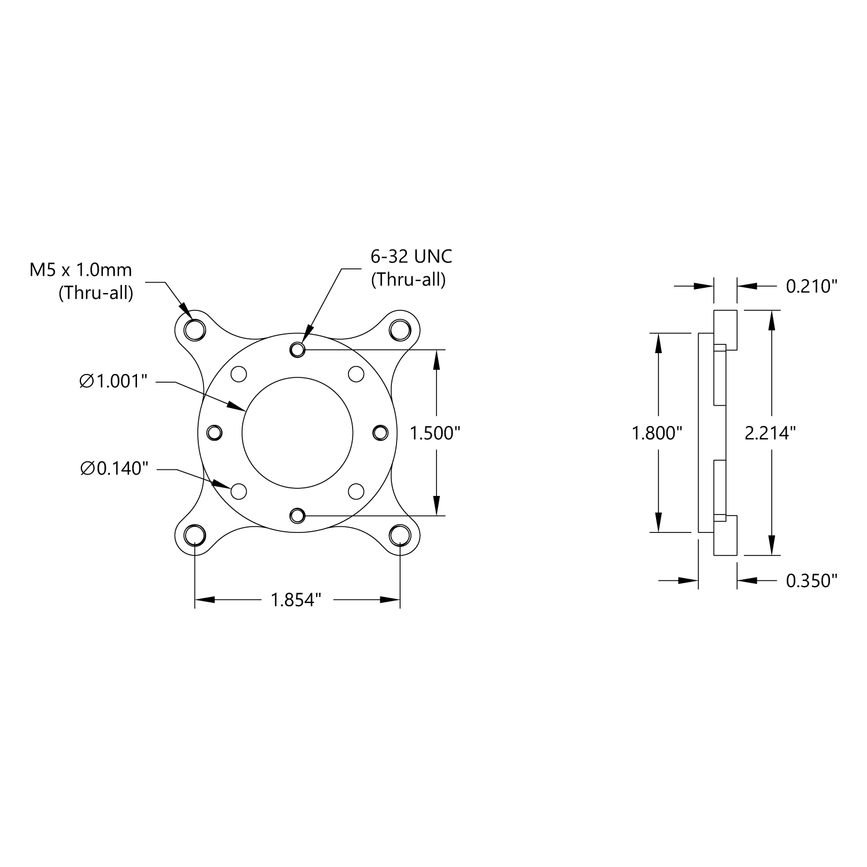

This NEMA 23 Stepper Motor Mount attaches to the face of your motor and provides mounting holes (both 6-32 threaded and #6 thru-hole) on the Actobotics 1.5" pattern. Being able to attach the motor aligned with the ½" hole of a channel or bracket gives you a good start to the assembly you want to put in motion.  The NEMA 23 mount comes with (4) M5 x 10mm socket head screws to fasten the motor to the mount.

Specs

Material Aluminum
Weight 1.24 oz (35g)
Finish Clear Anodized
