Premium Planetary Motor Mount D

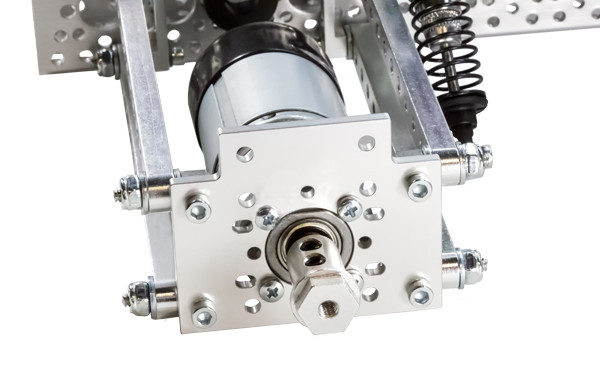

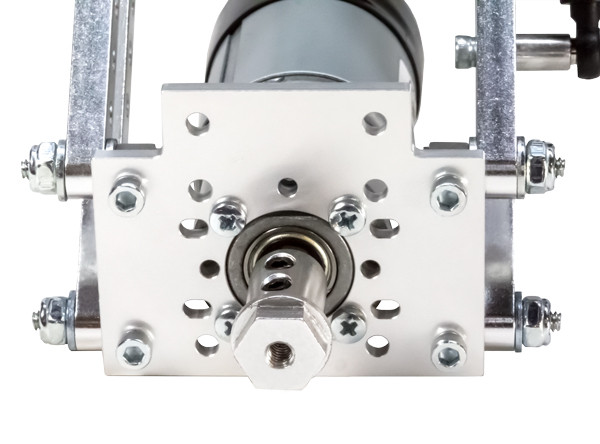

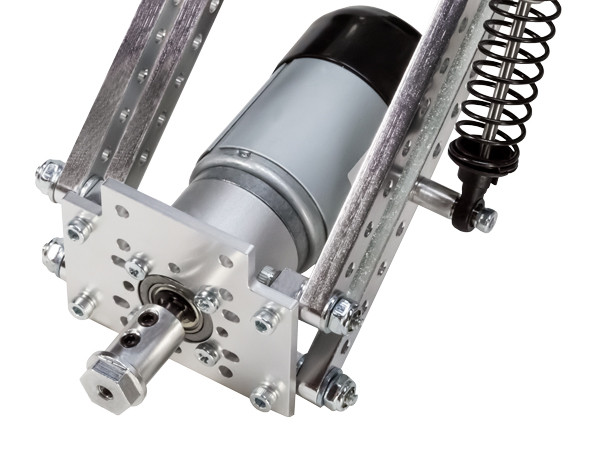

This motor mounting plate is used in the Actobotics Mantis Chassis but has many use-cases outside of this frame. The ⅛" aluminum plate is compatible with the following mounting patterns:

M3 x 26mm bolt circle (4 holes): Mounting pattern for many 32mm diameter planetary gear motors such as our HD Premium Planetary Gear Motors.

M3 x 28mm bolt circle (2 holes): Mounting pattern for many 36mm diameter planetary gear motors such as the REV HD Hex Motor and the Andymark Orbital Motor.

M3 x 31mm bolt circle (2 holes, offset 7mm from center): Mounting pattern for many of the 37mm diameter spur gear motors such as our Standard Spur Gear Motors, Precision Spur Motors, goBILDA 5200 and Andymark Neverest Classic motors.

The holes nearing the extremities of the plate are on the 1.5" pattern (spaced 1.061" apart as it’s catching the side of the pattern) so that you can fasten the bracket, plate, or channel of your liking.
