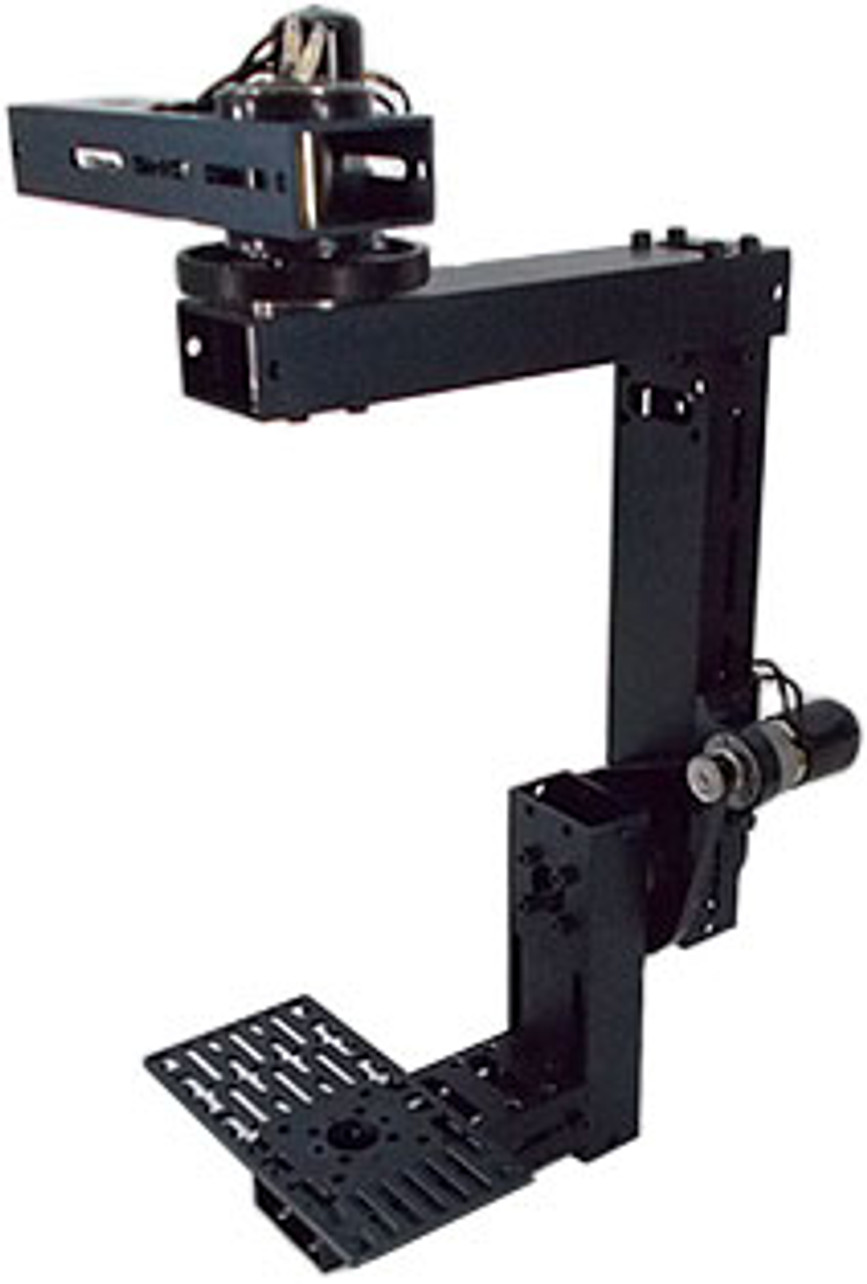

PT-2100 Pan & Tilt System

This precision system is designed to smoothly operate cameras up to 40 lbs even though the entire head only weighs 8.5 lbs. Dual ABEC-5 ball bearings support the hollow stainless steel shafts that allow video and power wires to be routed through the points of rotation. The system can operate in upright or hanging position. Control speed is fully proportional (variable) from 1/2° per second up to 20° per second.  Installing optional motors, range can go down to .05° per second up to 60° per second. Toothed Kevlar belts ensure minimal backlash, ultra quiet operation and have a lifetime warranty. Balancing your camera is done by simply loosening the belt on the corresponding axis and adjusting the camera position. The PT-2100 is precisely controlled by a digital joystick controller.  The two channel controller is fully proportional and the maximum speed of each axis can be limited by the min/max knobs for the ultra-slow shots.  Setup is quick and easy as the controller links to the pan and tilt head with a single CAT6 cable and is powered by a 12V power supply.  The system ships as a ready-to-run unit that includes a pan & tilt head, joystick control, 25 foot CAT6 cable, and 12V power supply. Camera shown in images not included. Manufactured in the USA.

Features:
• Adjustable Framework
• Stainless Steel Hollow Shafts
• Aluminum Construction (Anodized)
• Kevlar Belt Drive
• Expandable Controller
• Ultra Precision Gearmotors
• 12 Volt Operation
• RTR (Ready to Run) out of the box

Includes:
• Pan & Tilt System

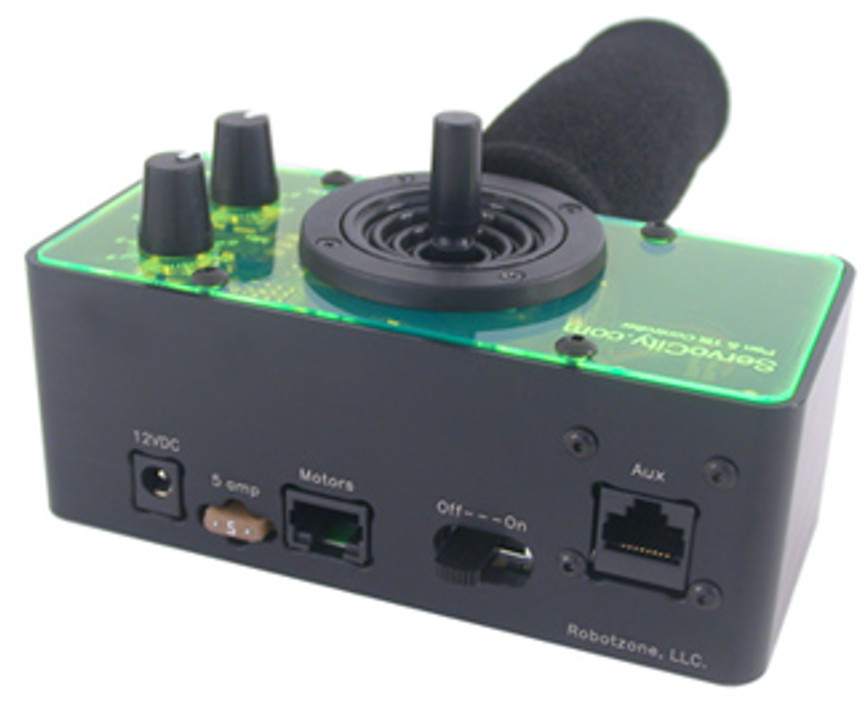

• Joystick Controller
• 25ft CAT6 Cable
• 12V DC Power Supply (120-220AC)
• Adjustment Tool
